Cole-Parmer Stuart® US150 Analogue Hotplate: Aluminium, 230VAC

Cole-Parmer Stuart® US150 Analogue Hotplate: Aluminium, 230VAC
B8R04380

Product code: B8R04380

Direct Delivery – up to 11 weeks. Delays Possible Due To COVID-19
GBP247
GBP296.4 inc VAT

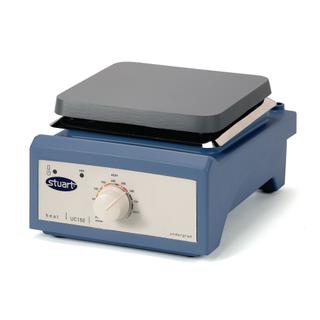

Model US150 is an analogue hotplate from Stuart with a robust aluminium/silicon alloy top plate for excellent heat transmission. The top plate has a thin ceramic coating for added chemical resistance. A 700W element gives rapid heating and ensures even temperature distribution across the whole surface of the plate. The hot plate has microprocessor control and an innovative LED based true °C temperature setting system rather than simply a 1 to 10 arbitrary scale. A coloured LED indicator surrounds the heat control knob illuminating the actual surface temperature in real time.

The unit can also be used in conjunction with the SCT1 digital contact thermometer to accurately control sample temperature rather than plate temperature.

The 'Hot' warning light will flash whenever the plate temperature is above 50°C even when the hot plate is turned off and unplugged from the mains.

The units also include BioCote® antimicrobial protection which reduces the presence of odour and stain causing microbes such as bacteria, mould and fungi on the product surface by up to 99.99%.  Formulated from silver ion additives, BioCote® provides built-in antimicrobial protection to support a more hygienic laboratory environment.

Please Note: BioCote® technology does not protect users or others against disease causing bacteria, germs, viruses, or other harmful organisms. This technology is not a substitute for good hygiene and/or cleaning practices.

Technical Specifications:

  • Top Plate Dimensions: 150mm x 150mm
  • Top Plate Material: Aluminium
  • Heater Power: 700W
  • Maximum Plate Temperature: 325°C
  • Overall Dimensions: (W)172mm x (L)248mm x (H)122mm
  • Time taken to boil 1L of water: 20.8 minutes

Stylish and economical general purpose hotplate designed with safety as well as performance in mind. The compact shape takes up less bench space and makes storage easier.

It has an integral fitting for a retort rod and the bottom is shaped to allow a retort base to slide underneath the unit if required so saving further bench space.

Further Information

Brand
Stuart
Heater Power
700W
Maximum Plate Temperature
325°C
Net Weight
2.2KG
Overall Dimensions
172mm x 248mm x 120mm
Product Type
Hotplate
Top Plate Dimensions
150mm x 150mm
Top Plate Material
Aluminium

Documents
