SensorMeter: Radioactive Count Rate

SensorMeter: Radioactive Count Rate
B8H28640

Product code: B8H28640

GBP271.65
GBP325.98 inc VAT
In stock
Quantity:

Product Description

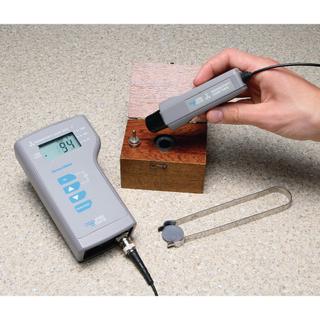

The Radioactive Count Rate SensorMeter measures radioactive count rates from 2 to 1000 counts per second in three ranges. The SensorMeter has a quiet click sounder giving an indication of count rate which may be switched off if not required. The combined Geiger tube and connecting lead (supplied separately), enables the detection of alpha, beta and gamma radiation and is easily hand held or clamped at a set distance from the source.

The Radioactive Count Rate SensorMeter has a BNC socket for connection for the Geiger probe (B8H28869), supplied separately.

Features:

  • Linearity: ±0.5% 2 to 1000 counts s-1 assuming best range is used
  • Time constant: 3.3s or 0.33s switchable
  • Readability: 0.4%
  • Battery life: 40 hours constant use typical with PP3 Manganese Alkaline battery (Battery NOT included)

Uses:

  • Variation of rate with distance
  • Absorption of radiation

Please note this item is unsuitable for conducting annual Radioactive Source Testing in schools.

Further Information

Battery Life
40 hours
Radioactive Count Rates
from 2 to 1000 counts per second in three ranges
Readability
0.4%
Sensor Type
Radioactivity
Time Constant
3.3s or 0.33s switchable

Documents

GBP271.65
GBP325.98 inc VAT
In stock
Quantity:

The Radioactive Count Rate SensorMeter measures radioactive count rates from 2 to 1000 counts per second in three ranges. The SensorMeter has a quiet click sounder giving an indication of count rate which may be switched off if not required. The combined Geiger tube and connecting lead (supplied separately), enables the detection of alpha, beta and gamma radiation and is easily hand held or clamped at a set distance from the source.

The Radioactive Count Rate SensorMeter has a BNC socket for connection for the Geiger probe (B8H28869), supplied separately.

Features:

  • Linearity: ±0.5% 2 to 1000 counts s-1 assuming best range is used
  • Time constant: 3.3s or 0.33s switchable
  • Readability: 0.4%
  • Battery life: 40 hours constant use typical with PP3 Manganese Alkaline battery (Battery NOT included)

Uses:

  • Variation of rate with distance
  • Absorption of radiation

Please note this item is unsuitable for conducting annual Radioactive Source Testing in schools.

Further Information

Battery Life
40 hours
Radioactive Count Rates
from 2 to 1000 counts per second in three ranges
Readability
0.4%
Sensor Type
Radioactivity
Time Constant
3.3s or 0.33s switchable

Documents
