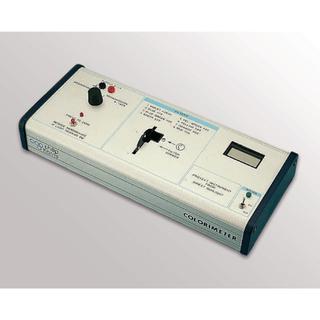

S-Range Digital Colorimeter - 240V by Philip Harris

S-Range Digital Colorimeter - 240V by Philip Harris
B8H28068

Product code: B8H28068

GBP521.5
GBP625.8 inc VAT
Out of stock

This a robust colorimeter featuring a stabilised power supply that maintains a constant light output from a 6V, 0.15A tungsten lamp with infra-red filter. There are two absorbance ranges and one transmission range, that are selected by a position rotary switch. As well as enabling the principles of colorimetric analysis to be taught in schools and colleges, it can also be used for the quantitative determination of substances present in small amounts and to monitor the course of a reaction which is accompanied by a change in the absorption of transmitted light. An automatic gain control provides automatic zeroing by simply pressing a switch and the instrument is insensitive to normal ambient lighting. The eight colour filters are held in a rotatable filter holder, and the disc can be removed cleaning or replacement. Spare filter wheels are available (B8L33431). The single cuvette holder takes 10mm path length cuvettes, and is part of the subassembly, moulded in plastic, there is a drain hole in the base to eliminate any accidental spillages causing damage. The instruments have 0-1V output sockets fitted as standard, to allow a datalogger or PC to be attached. The Philip Harris Colorimeter features an LCD display which displays the values according to the range selected.

Further Information

Brand
Philip Harris
Cuvette Holder
10mm
Lamp Source
6V, 0.15A MES
Optical System
Filters (8)
Output
0 - 1V for PC or Datalogger
Photometric Accuracy
+/-0.01A, +/-3%T
Photometric Range
0-2A, 0-100%T
Power requirement
210 - 250V 50/60Hz 3W (Power Lead Supplied)
Spares & Accessories
Colorimeter
Wavelength Range
430 - 700nm

Documents

GBP521.5
GBP625.8 inc VAT
Out of stock

This a robust colorimeter featuring a stabilised power supply that maintains a constant light output from a 6V, 0.15A tungsten lamp with infra-red filter. There are two absorbance ranges and one transmission range, that are selected by a position rotary switch. As well as enabling the principles of colorimetric analysis to be taught in schools and colleges, it can also be used for the quantitative determination of substances present in small amounts and to monitor the course of a reaction which is accompanied by a change in the absorption of transmitted light. An automatic gain control provides automatic zeroing by simply pressing a switch and the instrument is insensitive to normal ambient lighting. The eight colour filters are held in a rotatable filter holder, and the disc can be removed cleaning or replacement. Spare filter wheels are available (B8L33431). The single cuvette holder takes 10mm path length cuvettes, and is part of the subassembly, moulded in plastic, there is a drain hole in the base to eliminate any accidental spillages causing damage. The instruments have 0-1V output sockets fitted as standard, to allow a datalogger or PC to be attached. The Philip Harris Colorimeter features an LCD display which displays the values according to the range selected.

Further Information

Brand
Philip Harris
Cuvette Holder
10mm
Lamp Source
6V, 0.15A MES
Optical System
Filters (8)
Output
0 - 1V for PC or Datalogger
Photometric Accuracy
+/-0.01A, +/-3%T
Photometric Range
0-2A, 0-100%T
Power requirement
210 - 250V 50/60Hz 3W (Power Lead Supplied)
Spares & Accessories
Colorimeter
Wavelength Range
430 - 700nm

Documents
