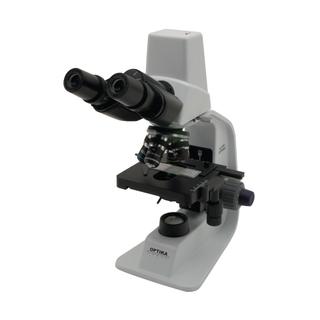

Optika B-150DBR Digital Binocular Microscope 400x

Optika B-150DBR Digital Binocular Microscope 400x
B8R05560
£609.99 ex VAT
Quantity:

Product Description

A fully functioning binocular microscope with additional digital imaging capabilities. A brilliant, robust instrument that is suitable for experienced users who want to document their investigations.

Microscope Specification:

• Total magnification: 40x, 100x, 400x, 1000x

• Eyepiece: Wide Field 10x/18mm

• Head: Binocular digital observation head, 360° rotating, with 45° inclined eyepiece tube. Diopter adjustment on left eyepiece. Interpupillary adjustment 48-75mm

• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings

• Objectives: Anti-fungal treated achromatic DIN

? 4x A.N. 0.10, W.D. 18mm

? 10x A.N. 0.25, W.D. 7mm

? 40x A.N. 0.65, W.D. 0.53mm

? 100x, A.N. 1.25, W.D. 0.13mm (oil immersion)

• Stage: Double layer with mechanical sliding stage with specimen holder, 125 x 116mm. X-Y movement range 76 x 30mm. Vernier scale on the two axes, accuracy 0.1mm

• Focussing: Coaxial coarse and fine focussing mechanism (graduated 0.002mm) with upper stop. Adjustable tension of coarse focussing knob

• Condenser: Abbe condenser, N.A. 1.2 pre-centred

• Illumination: 1W LED with adjustable intensity

• LED Details: 1W, 6300K colour temperature, average lifetime approx. 50000h

• Dimensions: H350 x W170 x D210mm

• Weight: 4kg

• Voltage: External power supply 100/240V, 50/60Hz, output 6V D.C. 2.5A. Internal NiMH rechargeable battery (up to 15 hours of use from a single charge, LED at medium intensity)

• Accessories included: Power supply, OPTIKA Vision Lite software disc, 1.8m USB cable, dust cover and instructions

Digital Camera Specification:

• Resolution: 2048 x 1536 pixels (3.14Mpx), 4:3 aspect ratio

• Pixel size: 2.2μm x 2.2μm

• Sensor: 1/2.5”CMOS

• Output: USB 2.0 port

• Framerate: 4fps (2048 x 1536 ), 15fps (1280 x 1024) or 30 fps (640 x 480)

• S/N Ratio: 40dB

• Dynamic Range: 66.5dB

• Exposure Time: 15s - 1/1500s

• Effective Digits: 10bit - on chip

• Sensitivity: 0.53 V/lux-sec (550nm)

• Software: OPTIKA Vision Lite for Windows XP, Vista, 7, 8 (32/64bit)
