Philip Harris 10" Microscope Tablet with Camera and Microscope Bundle

Philip Harris 10" Microscope Tablet with Camera and Microscope Bundle

B8R05952

Product code: B8R05952

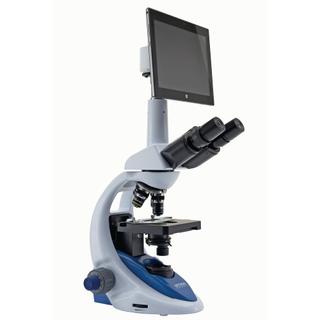

Buy the Philip Harris Tablet and Optika B-193 Trinocular Microscope together and save.

A brilliant innovation in microscopy; a tablet PC that has a built-in camera allowing it to be used with our microscope instruments. Perfect for the educator who is an innovator in the classroom too. The 360° camera rotation enables excellent teacher demonstrations. Tablet is pre-loaded with Optika software & includes instruction manual, touchpen and keyboard with touchpad. The tablet can be easily connected to the included Optika B-193 Trinocular Microscope.

The Optika Trinocular Microscope B193 is an advanced instrument, capable of up to 1000x magnification, with a modern finish and robust build. Perfect for use in examination assessed work and advanced level education. The trinocular head means students can use the binocular eyepieces for their investigations and teachers can examine and support them via the vertical monocular eyepiece without having to change the settings of the instrument, allowing uninterrupted workflow and better learning outcomes. The tablet's attached camera fits easily into the vertical monocular eyepiece for visualisation of samples.

Contents include:

  • Optika B-193 Trinocular Microscope
  • Philip Harris 10" Microscope Tablet with Camera
  • Keyboard
  • Eye piece magnifier
  • Connecting leads & Microscope charger
  • Stylus pen
  • Micrometric Slide

Technical Specifications:

Tablet:

  • Model: Tablet 10inch
  • Operating System: Windows 8.1 32-bit, Microsoft Office 365 Personal (1 year subscription)
  • Language: Multiple languages already installed
  • CPU: Intel® Bay trail Z3735F, Quad core
  • CPU Speed: 1.83 GHz
  • Graphics Card: Intel® HD Graphics, LPDDR3 controller
  • Memory Ram: 2.048 GB, LPDDR3
  • LCD display: LED 8.9' IPS Multi Touch Screen
  • LCD resolution: 1920 x 1200 Full HD, Active Matrix TFT Colour LCD
  • Storage: HDD 16+16GB
  • Network: Wireless IEEE 802.11 a/g/n Bluetooth 4.0
  • Input/output ports: Micro USB-B - Microphone Micro SD card reader - Micro HDMI Head-phone, separated power supply input
  • Control Buttons: Auto rotate off, volume control
  • Battery Technology: Lithium-ion battery, 2x cell
  • Battery capacity: 6000mAh
  • Max load: 10W
  • Battery Life: Up to 10 hours, up to 5.5 hours in continuous Camera Live View mode
  • Connection to the Load Power supply: 5.35V 2A with EuroPlug connection for 100-240VAC, USB port with USB cable
  • Dimensions: Thickness 95mm Height 157mm Width 220mm
  • Weight: 477g
  • Cables included: USB camera cable, OTG cable
  • Also included Instruction manual, Touch Pen and keyboard with touchpad

Camera:

  • Digital camera resolution: 3.14 MegaPixels
  • Analog camera resolution: N/A
  • Signal output: USB 2.0
  • Audio Signal: N/A
  • Sensor Size: 1\2'
  • Sensor technology: CMOS
  • Image format: 4\3
  • Full Image size: 2048 x 1536
  • Pixel size: 3.2 x 3.2 micron
  • Frame rate full resolution: 6.5 frames/sec (2048x1536)
  • Frame rate other resolutions: 28 frames/sec (1024x768) 55 frames/sec (640x480)
  • Sensitivity: 1.0V/Lux-second (550 nm)
  • Signal / noise ratio: 43dB
  • Dynamic range: 61dB

Optika B-193 Trinocular Microscope:

  • Dimension: (H)370 x (W)235 x (D)290mm

  • Weight: 6.5kg

  • Eyepieces: Wide field WF10X/18mm

  • Head: Trinocular observation head, inclined 30° and rotatable 360°

  • Observation Mode: Brightfield
  • Stage: Double layer with mechanical sliding stage, size 125 x 115mm, X-Y movement range 76 x 30, specimen holder for one slide. Vernier scale on the two axes, accuracy 0.1 mm
  • Photo port light split: 50/50 fixed. Diopter adjustment on left eyepiece.
  • Interpupillary adjustment 48-75mm
  • Revolver: Quadruple revolving nosepiece, rotation on ball bearings
  • Condenser: Abbe condenser, N.A. 1.25 pre-centred

Illumination:

  • Light source type: X-LED with adjustable intensity; light intensity is controlled using a knob on left side of the frame.
  • LED power 3W
  • Colour temperature: 6300K
  • LED average life time approx. 50,000h
  • Voltage: external power supply 100/240V, 50/60Hz, output: 7.5 V.
  • Max power required: 7W

Focussing:

  • Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen.
  • Adjustable tension of coarse focusing knob.

Objectives:

Achromatic (DIN) objectives with mechanical tube length 160 mm.

  • 4X, A.N. 0.10, W.D. 18mm
  • 10X, A.N. 0.25, W.D. 7mm
  • 40X, A.N. 0.65, W.D. 0.53mm
  • 100X, A.N. 1.25, W.D. 0.13mm (oil immersion)

All objectives are treated with an anti-fungus treatment.

  • Easy to set up
  • 360° rotation enables excellent teacher demonstrations
  • Excellent for SEN and partially sighted students
  • Tablet can be easily attached to use with the keyboard
  • High quality microscope

Further Information

Age Recommended from
11 Years
Brand
Philip Harris
Camera Resolution
3.1MP
CPU
Intel® Bay trail Z3735F
Quad core
1.83GHz
Graphics Card
Intel® HD Graphics
LPDDR3 controller
Microscope Objectives
4X
10X
40X
100X
Microscope Type
Trinocular
Operating System
Windows 8.1 32-bit
Microsoft Office 365 Personal (1 year subscription)
Product Type
Microscope & Tablet Bundle
Slide Type (Kingdom)
-
Tablet Size
10 inch
