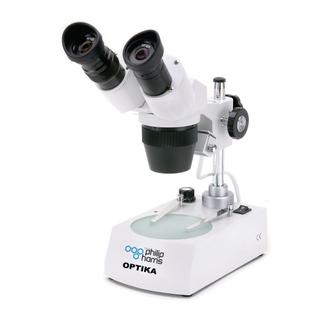

Philip Harris ST402L Stereo Microscope

£136.99ex VAT
Code: B8R05550
Unit: Each
Quantity:

Product Description

Stereomicroscopy is easy with this simple instrument that will allow the student to be completely in control and have fun investigating the microscopic world. This a standard instrument used in classrooms the world over, highly reliable with solid construction.

Full Specification:

• Total magnification: 20x and 40x.

• Eyepieces: WF10x/20mm with eyecups for protection.

• Head: Binocular, 45° inclined front side eyepiece tube. Diopter adjustment on left eyepiece. Interpupillary adjustment 51-75mm.

• Nosepiece: Turret type.

• Objectives: Achromatic 2x and 4x. Working distance 80mm.

• Stage: Black/white disc for contrast, and semi-transparent plastic for transmitted light.

• Focussing: Rack and pinion mechanism controlled by a pair of knobs.

• Illumination: Adjustable incident and transmitted illumination by tungsten bulbs 12V/10W.

• Optical system: Achromatic.

• Voltage: External power supply 240V, 50Hz, 1A. Max. power 20W

• Dimensions: H307 x W117 x D190mm.

• Weight: 4kg

• Accessories included: Power supply, dust cover and instructions
