Teltron Tube - Maltese Cross

Teltron Tube - Maltese Cross
B8A49517

Product code: B8A49517

Direct Delivery – up to 8 weeks. Delays Possible Due To COVID-19
GBP439
GBP526.8 inc VAT

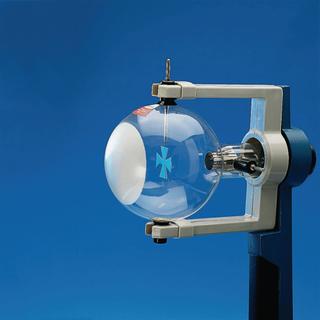

High-vacuum electron tube with divergent electron gun aimed at a fluorescent screen partially obscured by a Maltese cross. For demonstrating the linear propagation of electrons in the absence of applied electromagnetic fields by projecting the shadow of a Maltese cross onto the fluorescent screen. Application of a magnetic field using the Helmholtz Coils (B8A49475) allows for students to study the fundamental science of electron optics, such as beam focusing.

The tube comprises of the standard spherical glass body with cylindrical neck, a diode electron gun with a filament and cylindrical anode connected to 4mm sockets in the plastic cap, a metal Maltese cross mounted in the centre of the sphere (connected via a 4mm plug in one of the side caps) and a phosphor coated screen.

Technical Specifications:

  • Maximum filament voltage: =7.5V AC/DC
  • Maximum anode voltage: 5 kV
  • Anode current: 0.18mA at 4kV

Requires the following equipment to operate:

  • B8A49463 - Universal Stand
  • B8R02653 - EHT Power Supply - to power the anode
  • B8R07149 - EHT Experiment Leads (3 required)
  • B8G85458 - Bench Power Supply - to power the filament
  • B8R06545 - 4mm Leads
  • B8A49475 - Helmholtz Coils (Optional)
  • B8G85483 - College Power Supply Unit - to power the optional Helmholtz Coils
  • A-Level Physics: Atomic Physics (Cathode Rays)

Further Information

Anode Current
0.18mA at 4kV
Brand
Uk 3B Scientific
Curriculum Link
Atomic Physics
Key Stage Suitability
Key Stage 5+
Maximum Anode Voltage
5kV
Maximum Filament Voltage
Less than or equal to 7.5 V AC/DC
Product Type
Teltron Tube

Documents

GBP439
GBP526.8 inc VAT
Direct Delivery – up to 8 weeks. Delays Possible Due To COVID-19

High-vacuum electron tube with divergent electron gun aimed at a fluorescent screen partially obscured by a Maltese cross. For demonstrating the linear propagation of electrons in the absence of applied electromagnetic fields by projecting the shadow of a Maltese cross onto the fluorescent screen. Application of a magnetic field using the Helmholtz Coils (B8A49475) allows for students to study the fundamental science of electron optics, such as beam focusing.

The tube comprises of the standard spherical glass body with cylindrical neck, a diode electron gun with a filament and cylindrical anode connected to 4mm sockets in the plastic cap, a metal Maltese cross mounted in the centre of the sphere (connected via a 4mm plug in one of the side caps) and a phosphor coated screen.

Technical Specifications:

  • Maximum filament voltage: =7.5V AC/DC
  • Maximum anode voltage: 5 kV
  • Anode current: 0.18mA at 4kV

Requires the following equipment to operate:

  • B8A49463 - Universal Stand
  • B8R02653 - EHT Power Supply - to power the anode
  • B8R07149 - EHT Experiment Leads (3 required)
  • B8G85458 - Bench Power Supply - to power the filament
  • B8R06545 - 4mm Leads
  • B8A49475 - Helmholtz Coils (Optional)
  • B8G85483 - College Power Supply Unit - to power the optional Helmholtz Coils
  • A-Level Physics: Atomic Physics (Cathode Rays)

Further Information

Anode Current
0.18mA at 4kV
Brand
Uk 3B Scientific
Curriculum Link
Atomic Physics
Key Stage Suitability
Key Stage 5+
Maximum Anode Voltage
5kV
Maximum Filament Voltage
Less than or equal to 7.5 V AC/DC
Product Type
Teltron Tube

Documents
