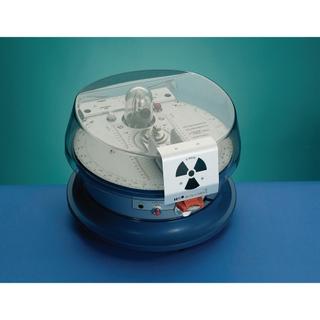

Tel-X-Ometer

Tel-X-Ometer
B8R06806

Product code: B8R06806

Direct Delivery – up to 6 weeksDelays Possible Due To COVID-19
GBP5974
GBP7168.8 inc VAT
Quantity:

Product Description

The Tel-X-Ometer enables X-Ray investigations to be carried out in the normal school laboratory. Extensive safety precautions are built into the apparatus, which conforms completely to the recommendations of the International Commission on Radiological Protection, 1968.

Schools should check CLEAPSS guide L93 Ionising Radiations and Radioactive Substances before purchase.

The radiation level at 50mm from any part of the surface of the instrument does not exceed 0.5mR per hour. Also, in accordance with the recommendations laid down, a warning card is supplied with each instrument for affixing to the door of the room where the experiments are to be conducted.

The apparatus is in effect an X-ray spectrometer which, by means of simple adaptations, will fulfil a range of requirements as follows:

  • A broad beam of X-rays for analysis of their general properties
  • Single crystal Bragg Diffractometer having a scale accuracy of 5 minutes of arc
  • Powder Camera for Debye/Scherrer experiments to an accuracy of 30 minutes of arc
  • Fluorescent radiation emitter for a study of the Moseley Theory
  • An experimental region for the mounting of innovative studies of the teachers choice.

A specially designed miniature X-ray tube is used which protrudes through the cast aluminium base of the spectrometer table and is enclosed within a thick walled lead glass dome.

The apparatus is supplied with the X-ray tube installed and aligned for immediate use. Every instrument is carefully checked under working conditions before dispatch, in addition to thorough testing of the X-ray tube itself.

Mains power is supplied via 2m of 3-core cable and a sector enables the instrument to operate on voltages between 110 and 240, at 50 to 60Hz.

A detailed instruction book is provided giving set-up details, notes for twenty-five experiments (using the accessory set which is available separately - B8R06807) and teacher's notes.

Technical Specifications:

X-Ray Tube:

  • Anode Voltage: 20/30kV selectable with electronic stabilisation
  • Emitter Current: 0-80µA continuously adjustable with electronic stabilisation
  • Radiation Dosage: <0.1mrem/h ¯¹ at 0.1m from accessible surface
  • Heated Cathode: 4V, 1A
  • Focal Point: 5mm x 1mm
  • Anode Material: Copper
  • Leaded Glass Collimator: 5mm Diameter
  • Beam Divergence: Better than 10°
  • Wavelength Characteristic Radiation: Cu-Ka: 154pm, Cu-Kß: 138pm
  • Dimensions: 100mm x 32mm diameter

Counter Tube Goniometer:

  • Pivot Range: 0°, +10° to +130° and -10° to -130° relative to the axis of the beam
  • Angle Coupling: Independent of sample holder alignment or in the ratio 2:1
  • Accuracy of Bragg Angle 2?: 5 minutes of arc
  • Timer: 0 to 60 minutes, continuously adjustable
  • Mains: 115V/230V, 50/60Hz via mains lead
  • Power Consumption: 100VA

Overall Dimensions:

  • Height: 250mm
  • Diameter: 370mm
  • Mass: 9kg
  • Supplied complete with X-ray tube.

Associated products include:

  • B8R06807 - Basic Accessory Kit for Tel-X-Ometer
  • B8R06805 - Geiger-Muller Tube for Tel-X-Ometer
  • A-Level Physics: Atomic Physics & Radiation, Medical Physics - X-Rays

Further Information

Brand
Uk 3B Scientific
Curriculum Link
Atomic Physics & Radiation
Key Stage Suitability
Key Stage 5+
Overall Dimensions
250mm x 370mm
Product Type
Tel-X-Ometer
Spares & Accessories
Accessory Kit & GM Tube available
X-Ray Tube: Anode Voltage
20/30kV selectable with electronic stabilisation
X-Ray Tube: Emitter Current
0-80µA continuously adjustable with electronic stabilisation
X-Ray Tube: Focal Point
5mm x 1mm
X-Ray Tube: Heated Cathode
4V, 1A
X-Ray Tube: Radiation Dosage
<0.1mrem/h ¯¹ at 0.1m from accessible surface
