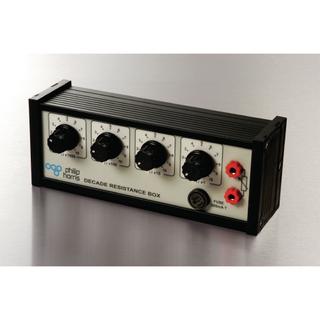

Decade Resistance Unit

Decade Resistance Unit
B8L32177

Product code: B8L32177

GBP87.5
GBP105 inc VAT
In stock

For use as an accurate potential divider, ratio arm etc. This unit employs high stability metal film resistance elements having superior characteristics to traditional wire wound coils. It is equally suitable for a.c. or d.c. use. The individual decades are series connected, each having switched positions of 0 to 9, and are mounted in line with 4mm socket terminals linked to the ends of the chain. The top panel is clearly marked with the resistance value.

  • Range: 9999O
  • Tolerance: ± 1.0%
  • Dimensions: 220mm x 110mm x 60mm

Further Information

Brand
Philip Harris
Circuit Components
Decade Resistance Box
Dimensions
220mm x 110mm x 60mm
Product Type
Resistance Box
Range
9999 Ohms
Tolerance
1%
GBP87.5
GBP105 inc VAT
In stock

For use as an accurate potential divider, ratio arm etc. This unit employs high stability metal film resistance elements having superior characteristics to traditional wire wound coils. It is equally suitable for a.c. or d.c. use. The individual decades are series connected, each having switched positions of 0 to 9, and are mounted in line with 4mm socket terminals linked to the ends of the chain. The top panel is clearly marked with the resistance value.

  • Range: 9999O
  • Tolerance: ± 1.0%
  • Dimensions: 220mm x 110mm x 60mm

Further Information

Brand
Philip Harris
Circuit Components
Decade Resistance Box
Dimensions
220mm x 110mm x 60mm
Product Type
Resistance Box
Range
9999 Ohms
Tolerance
1%
