Hall Effect Experiment - N-Type

£212.99ex VAT
Code: B8H28389
Unit: Each
Quantity:

Product Description

Hall Effect Experiment - N-Type

The semi-conductor germanium, with its high carrier mobility, makes it possible to demonstrate the Hall effect with very simple equipment.

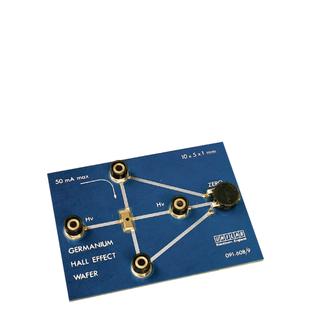

The wafer on this board measures 10 x 5 x 1mm and is mounted on a printed circuit panel which allows a magnet to be brought near the wafer surface. (Owing to the fragile nature of the wafer, a piece of card should be used to protect it against direct contact with the magnet).

A 10kΩ zero balance control is fitted. Two SP2 cells are needed to provide the circulating current and the bar magnet will then produce a Hall voltage which can be read directly on a millivoltmeter.

All sockets are 4mm.

Nuffield specification 1012.

Mass: 0.3kg

Size: 110 x 50 x 23mm.
