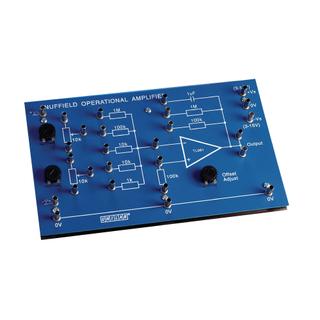

Operational Amplifier

Arranged with 5 input resistors, 2 feedback resistors and capacitor, all selected by plug-in leads. An ofset control is also fitted.

Two 10kΩ potentiometers allow input voltages to be varied continuously.

A Regulated power supply between ±5V to ±15V is required.
