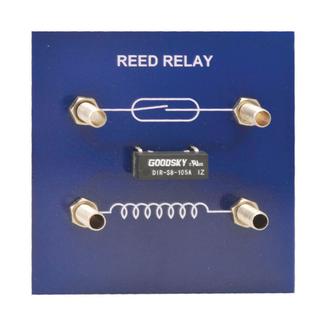

Single Pole Reed Relay
A simple circuit module that can be used to construct simple circuits of the type normally implemented on, for example a Worcester Circuit Board. Very useful for younger students to learn more applications of circuits anddevices. The module includes a 4mm plug connection.
A current through the coil produces magnetism to cause the reed to switch another circuit. The reed contacts are protected from shortcircuit damaged by low value series resistor.
