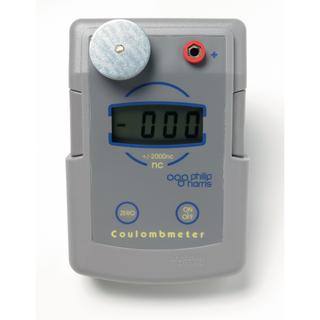

Digital Coulombmeter: 0-1999nC by Philip Harris

Digital Coulombmeter: 0-1999nC by Philip Harris
B8H29723

Product code: B8H29723

GBP64.5
GBP77.4 inc VAT
In stock

The Philip Harris range of digital meters have been designed to provide accurate, high quality instruments for education applications. The design of the meters, including the positioning and identification of the 4mm sockets and graphics on the front panel, ease the conceptual jump from circuit diagram to physical implementation.

Digital Coulombmeter

  • Range: 0 to 1999nC.
  • Accuracy: ±10% of F.S.D.
  • Overload Capability: 100V.
  • Frequency Response, ±2%: 0 to 10kHz.
  • Display: 31/2 digit LCD with polarity and low battery indication.
  • Battery: Internal 9v battery PP3 or equivalent (not included).
  • Expected Battery Life: 5000 hours.
  • Automatic switch off after 50 minutes of inactivity.
  • Accuracy: +1% of full scale indication typical.
  • Dimensions: 130mm x 92mm x 55mm

The unit is powered by an internal PP3 battery which is not included but is available to purchase separately (B8R05410).

Spare Metal Discs are also available to purchase separately (B8R08126).

Associated Products:

  • Electrostatic Rods: B8A47969, B8H26631, B8L01491

Further Information

Accuracy
±10% of F.S.D.
Battery
PP3 9V (not included)
Brand
Philip Harris
Circuit Components
Coulombmeter
Digital Meter Type
Coulombmeter
Dimensions
130mm x 92mm x 55mm
Frequency Response
0 to 10kHz (±2%)
Meter Type
Coulombmeter
Overload Capability
100V
Product Type
Digital Meters
Range
0-1999nC

Documents
