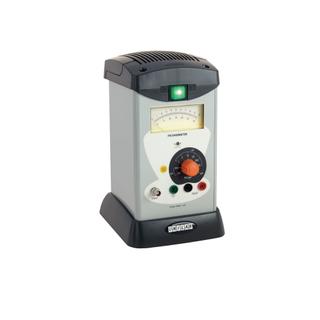

Spacesaver Picoammeter - Pack of 5 Pack of five
Product code: B8R06064
Product Description
• Ideal for experiments such as Planck's Constant Determination• Detect currents as low as 1pA on the 100pA range• Input voltage up to 5kV• BNC socket for shielded lead• Auto-zero facility The Picoammeter is designed to measure very small currents and has nine ranges from 100pA to 1mA, selected by rotary switch. The instrument has a large moving coil meter, with an auto-zero facility. Input is by way of 4mm sockets or a BNC socket, for very low currents where a shielded lead is preferred. Input impedance is 10MΩ and voltages up to 5kV will not damage the unit. Suggested uses include: measurement of ionisation currents, reverse currents of silicon diodes, resistivities of wood and paper, capacitor leakage current, etc. Mass: 2.7kg.
This device is compliant to EN61010-2010 with certificates available on request.
Size: 175 x 190 (206mm inc. cable clip) x 298mm
