S-Range Digital Joulemeter by Philip Harris

S-Range Digital Joulemeter by Philip Harris
B8H28354

Product code: B8H28354

GBP215
GBP258 inc VAT
Was 432.5
In stock

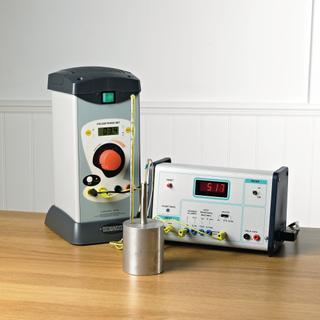

This accurate electronic joule and wattmeter, usable with both alternating and direct input voltages, can be used to measure the energy supplied to electric heaters in calorimetry experiments and for energy conversion investigations when it is required to compare the input and output energies of motors and dynamos.

At a more advanced level it can be used to measure the energy stored in a capacitor. It can also be used to show that maximum power is dissipated when the source and load resistance are equal, and that no power is dissipated in a purely reactive load.

An oscilloscope may be used to compare the input voltage and the instantaneous power dissipation; and to demonstrate the difference between average and peak powers, and the effect of phase angle variation.

The instrument has four internal shunts to give maximum current ranges of 0.7mA, 7mA, 0.7A and 7A a.c. with a max input of 15V (the maximum input power can be doubled when used on d.c.; the maximum voltage then being 20V d.c. with corresponding current maxima of 1mA, 10mA, 1A and 10A).

Each input current range has three joule ranges selected by a slide switch.

Features:

  • Determine specific heat capacity of metal
  • Measure the enthalpy changes of reactions taking place in a solution
  • Investigate the efficiency of energy conversion
  • Meter output sockets for display of watts
  • Input voltage: 0 to 15 a.c. (21V d.c.)
  • Input resistance: 1MO
  • Input frequency: d.c. or 50 to 1000Hz a.c
  • Max. load current: 0.7mA, 7mA, 0.7A and 7A
  • This device is compliant to EN61010-2010 with certificates available on request

Associated Products:

  • Immersion Heaters and Calorimeter Blocks
  • Oscilloscope

Further Information

Brand
Philip Harris
Input Resistance
1M Ohm
Input Voltage
0-15V a.c. (21V d.c.)
Maximum Load Current
0.7mA, 7mA, 0.7A and 7A
Product Type
Joulemeter

Documents

GBP215
GBP258 inc VAT
Was 432.5
In stock

This accurate electronic joule and wattmeter, usable with both alternating and direct input voltages, can be used to measure the energy supplied to electric heaters in calorimetry experiments and for energy conversion investigations when it is required to compare the input and output energies of motors and dynamos.

At a more advanced level it can be used to measure the energy stored in a capacitor. It can also be used to show that maximum power is dissipated when the source and load resistance are equal, and that no power is dissipated in a purely reactive load.

An oscilloscope may be used to compare the input voltage and the instantaneous power dissipation; and to demonstrate the difference between average and peak powers, and the effect of phase angle variation.

The instrument has four internal shunts to give maximum current ranges of 0.7mA, 7mA, 0.7A and 7A a.c. with a max input of 15V (the maximum input power can be doubled when used on d.c.; the maximum voltage then being 20V d.c. with corresponding current maxima of 1mA, 10mA, 1A and 10A).

Each input current range has three joule ranges selected by a slide switch.

Features:

  • Determine specific heat capacity of metal
  • Measure the enthalpy changes of reactions taking place in a solution
  • Investigate the efficiency of energy conversion
  • Meter output sockets for display of watts
  • Input voltage: 0 to 15 a.c. (21V d.c.)
  • Input resistance: 1MO
  • Input frequency: d.c. or 50 to 1000Hz a.c
  • Max. load current: 0.7mA, 7mA, 0.7A and 7A
  • This device is compliant to EN61010-2010 with certificates available on request

Associated Products:

  • Immersion Heaters and Calorimeter Blocks
  • Oscilloscope

Further Information

Brand
Philip Harris
Input Resistance
1M Ohm
Input Voltage
0-15V a.c. (21V d.c.)
Maximum Load Current
0.7mA, 7mA, 0.7A and 7A
Product Type
Joulemeter

Documents
