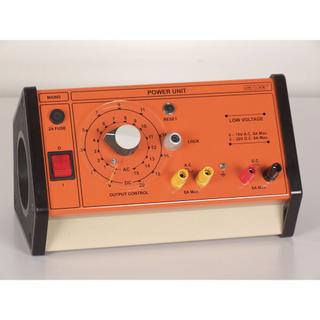

Retro Ranger PSU by Unilab

Retro Ranger PSU by Unilab
B8R04366

Product code: B8R04366

GBP159.99
GBP191.99 inc VAT
In stock
Quantity:

Product Description

This is the workhorse of the Unilab Retro range, offering continuously variable a.c. up to 15 volts, and d.c. up to 20 volts, at a combined current of up to 8 amps. This unit is ideal where high power is required, such as high-power quartz lamps or for powering simultaneous experiments.

The voltage is selected by a large knob on the front panel, with dual scale around the outside to indicate a.c. and d.c. voltage setting. It can be locked at a limit by way of an adjustable transparent Perspex disc around the control knob which is secured by a hex socket. An Allen key is provided for the teacher or technician to set the desired locks.

The supply offers simultaneous a.c. and d.c. output from dedicated pairs of shrouded 4mm sockets, and the shroud can be partially unscrewed for other types of connection, such as bare wires.

The unit has two in-built layers of protection. The first is a thermal trip on the secondary circuit, with a reset button for when the problem load has been disconnected. The second is a 2A mains fuse, accessed from the front panel, on the primary circuit. Allen key included.

  • Locking mechanism to limit or pre-set the voltage available to students in specific experiments.
  • 4mm output socket/terminals
  • Thermal "trip", which can be reset shortly after removal of the excess load
  • Robustly made with captive mains lead and integral cable wraps on the back panel
  • Protected by a time delay mains fuse in the front panel.

Complies to EN61010 2010, certificate available on request.

Size: L290 x W165 x H165mm.

Further Information

Brand
Unilab
Fuse (front panel)
T2A
Humidity Limits (%RH)
10 - 90
Mains input
230V ac 50Hz
Max current (A)
8 (total ac & dc)
Maximum Voltage
20V dc
Output Control
variable
Output Range (V)
0-15 ac and 0-20 dc, smoothed
Power rating (VA)
242
Power Supply Type
retro ranger
Product Type
Power supply units
Temperature limits (°C)
-5 to 50

Documents
