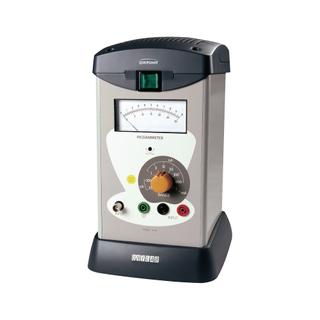

Spacesaver Picoammeter by Unilab

Spacesaver Picoammeter by Unilab
B8G85756

Product code: B8G85756

GBP213
GBP255.6 inc VAT
In stock
Quantity:

Product Description

The Picoammeter is designed to measure very small currents and has 9 ranges from 100pA to 1µA, which can be selected using the rotary switch on the front of the instrument. The instrument has a large moving coil meter, with an auto-zero facility. Input is by way of 4mm sockets, or a BNC socket for very low currents where a screened lead is preferred. Voltages up to 5kV will not damage the unit.

The instrument is housed in the Unilab spacesaver case.

The mains cord is kept tidy, by means of the cable retainer on the back of the unit which allows the cable to be stowed away neatly with the use of winding hooks and a clip to secure the cable.

Suggested uses include: measurement of ionisation currents, reverse currents of silicon diodes, resistivity of insulators, capacity leakage of currents and more.

  • Large illuminated analogue meter
  • Detects current as small as pA
  • Input Resistance of 10MO and maximum voltage input of 5kV
  • Input via 4mm shrouded sockets or BNC connector for screened leads
  • Auto-zero facility
  • This device is compliant to EN61010-2010 with certificates available on request

Dimensions:

Width: 175mm.

Depth: 190mm (including cable clips: 206mm)

Height: 298mm

Mass: 2.7kg.

Further Information

Brand
Unilab
Fuse
F50mA
Humidity (%RH)
10 - 70
Input impedance (MO)
10
Maximum input
5kV 1µA
Maximum Voltage
5kV
Meter Type
Picoammeter
Product Type
Meters
Ratings
230V ac 50Hz 12VA
Temperature range (°C)
10 - 40

Documents
