Philip Harris Spectrum Tube - Mercury Vapour

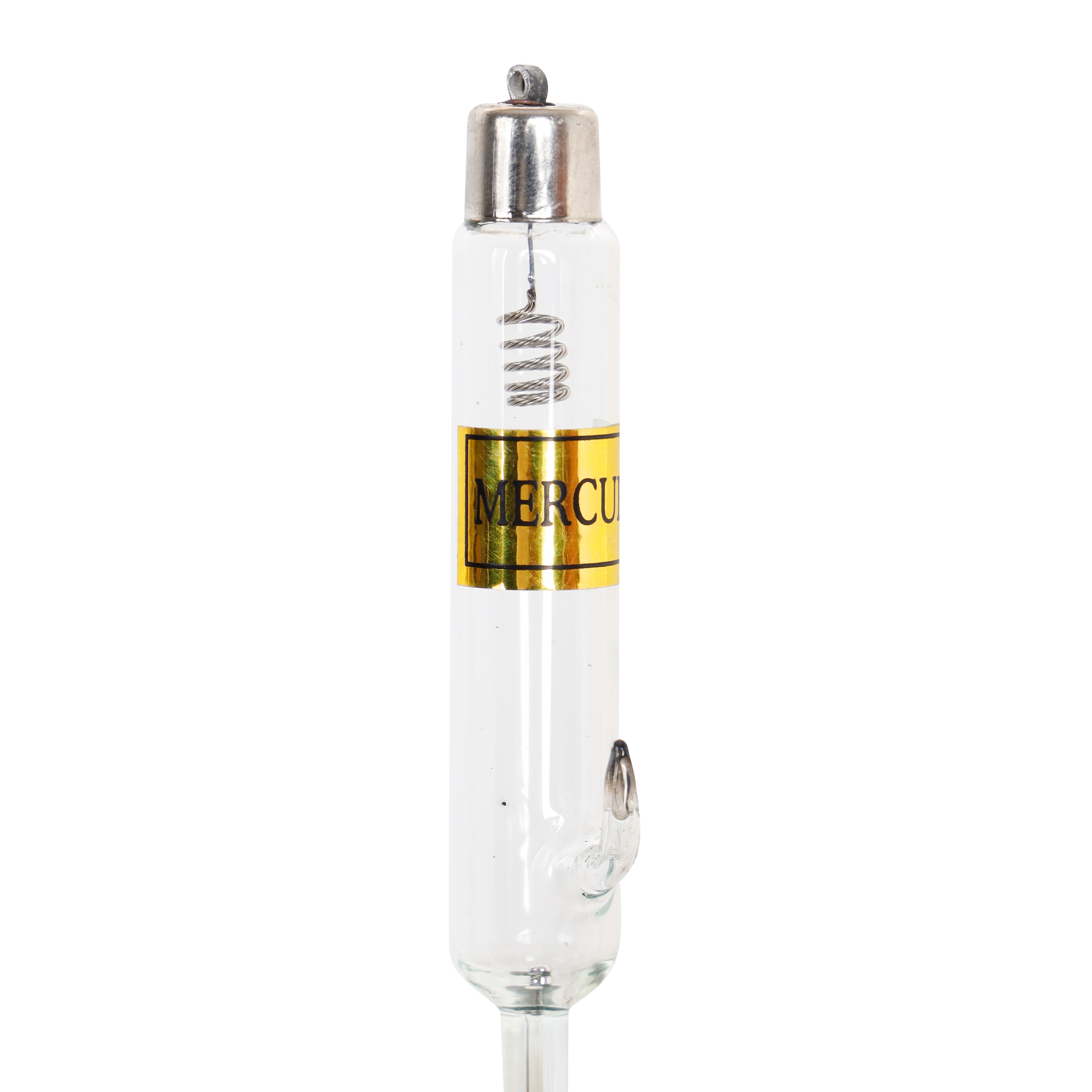

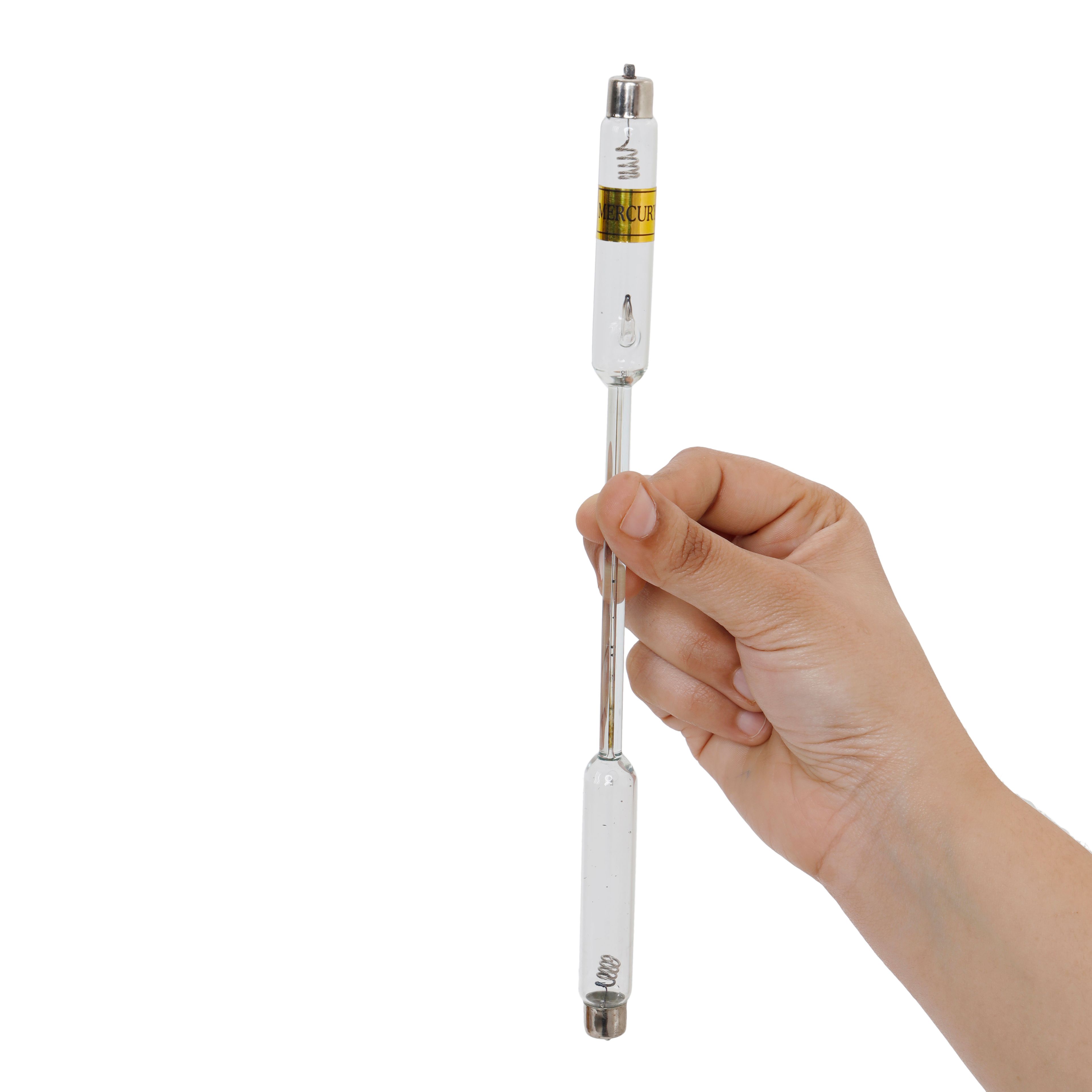

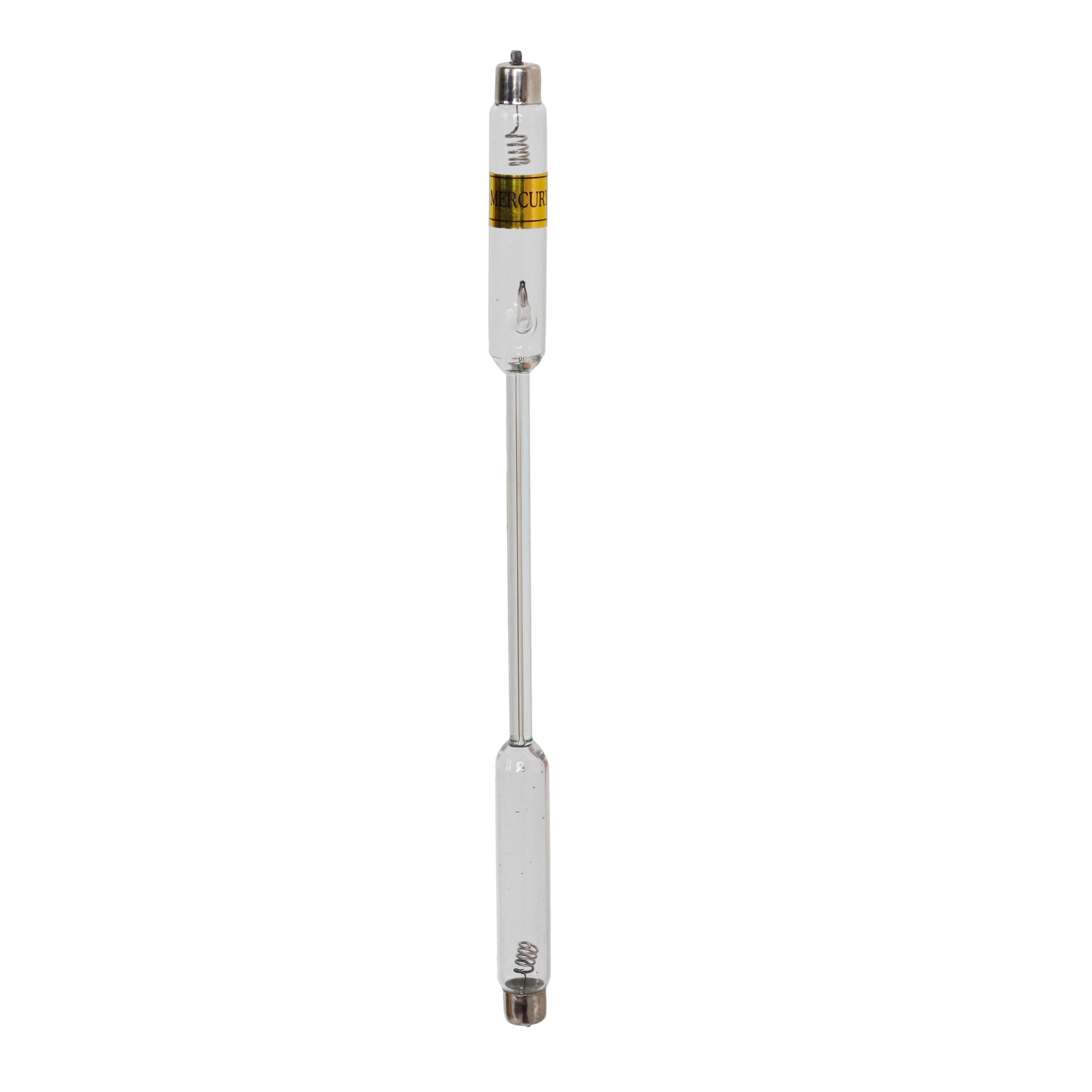

Mercury vapour-filled discharge tube for studying typical spectra of the different gases and for use in calibrating spectrometers. The glass body is provided with metal end caps and is constricted along the middle portion to concentrate the discharge glow.
- Tube Length: 260mm
- Strike Voltage: 2000V - 4000V
- Maximum Recommended Running Current: 3mA
- Recommended Run Cycle: 30 seconds on, 30 seconds off

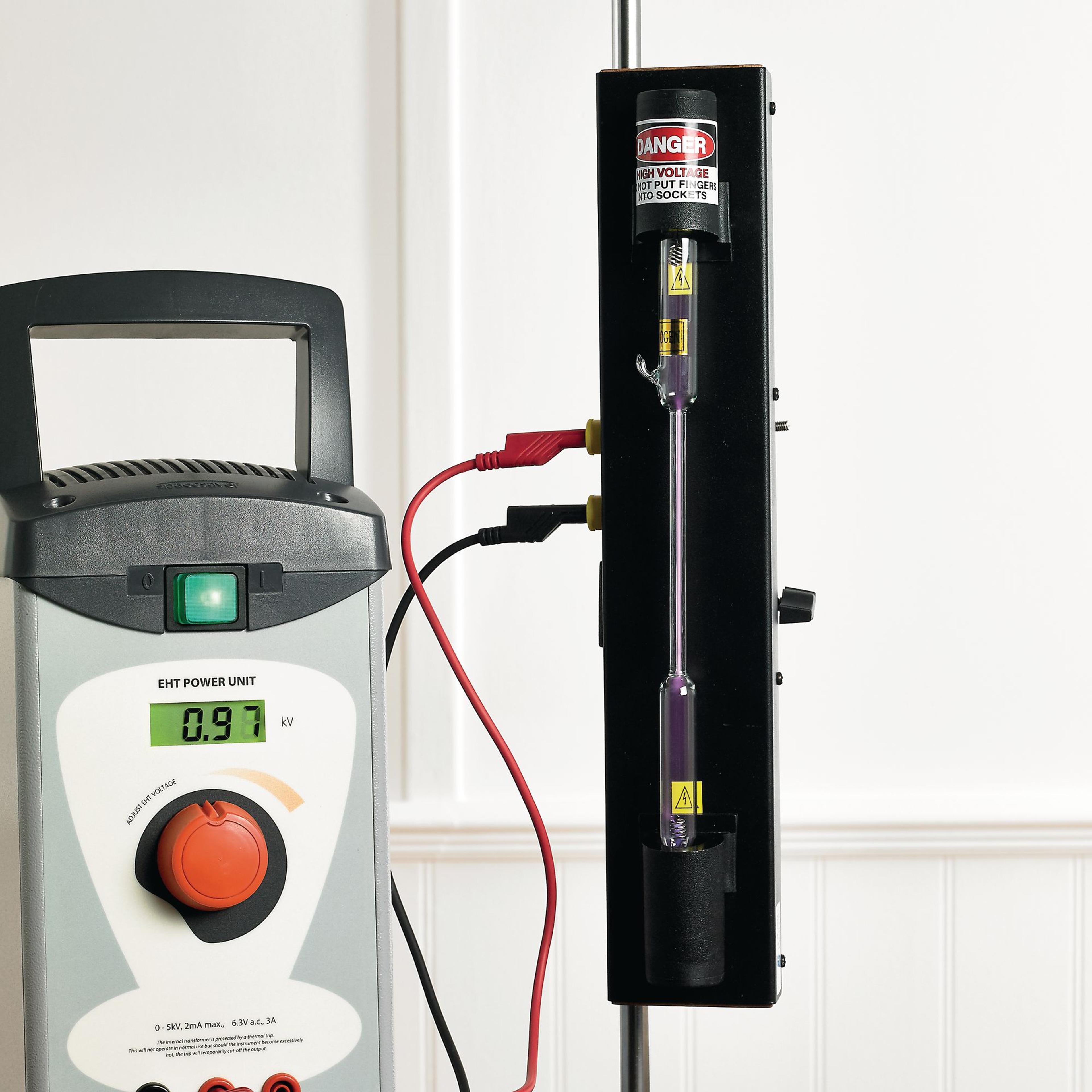

Requires the following equipment to operate:
- Spectrum Tube Holder with Power Supply - B8R08098
Or:
- Spectrum Tube Holder - B8R06039
- E.H.T. Power Supply - B8R02653
- E.H.T. Safety Experiment Leads - B8R07149
Alternative individual tubes are available to purchase separately:
- Argon - B8R06989
- Helium - B8R06986
- Hydrogen - B8A46539
- Krypton - B8R06991
- Neon - B8A46565
- Nitrogen - B8A46541
- Oxygen - B8A46553
- Xenon - B8R06992
There is also a bundle of 4 tubes available - B8R06832 - Hydrogen, Nitrogen, Oxygen, Neon
- Diffraction Spectroscope available separately: B8A81802
