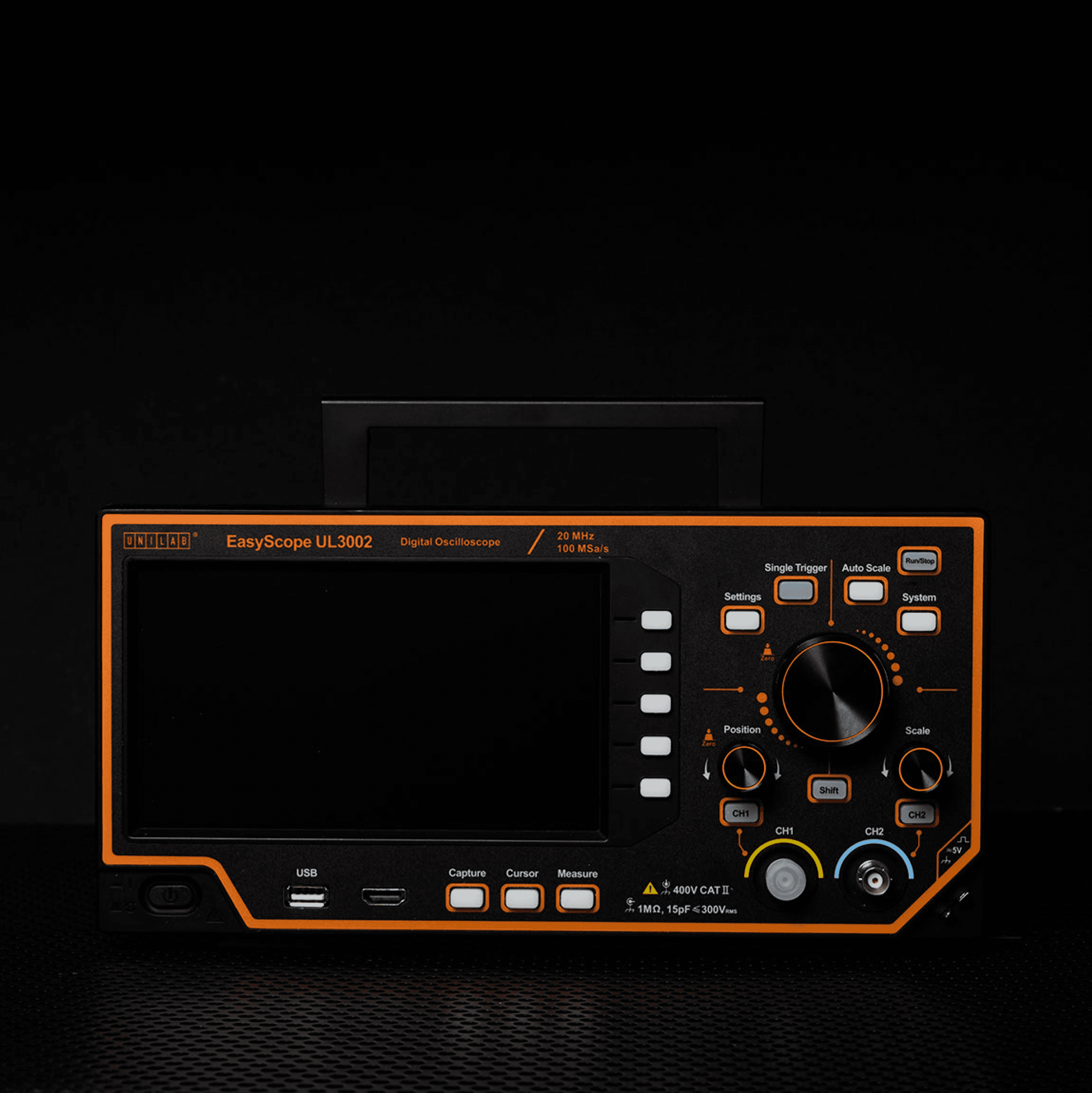

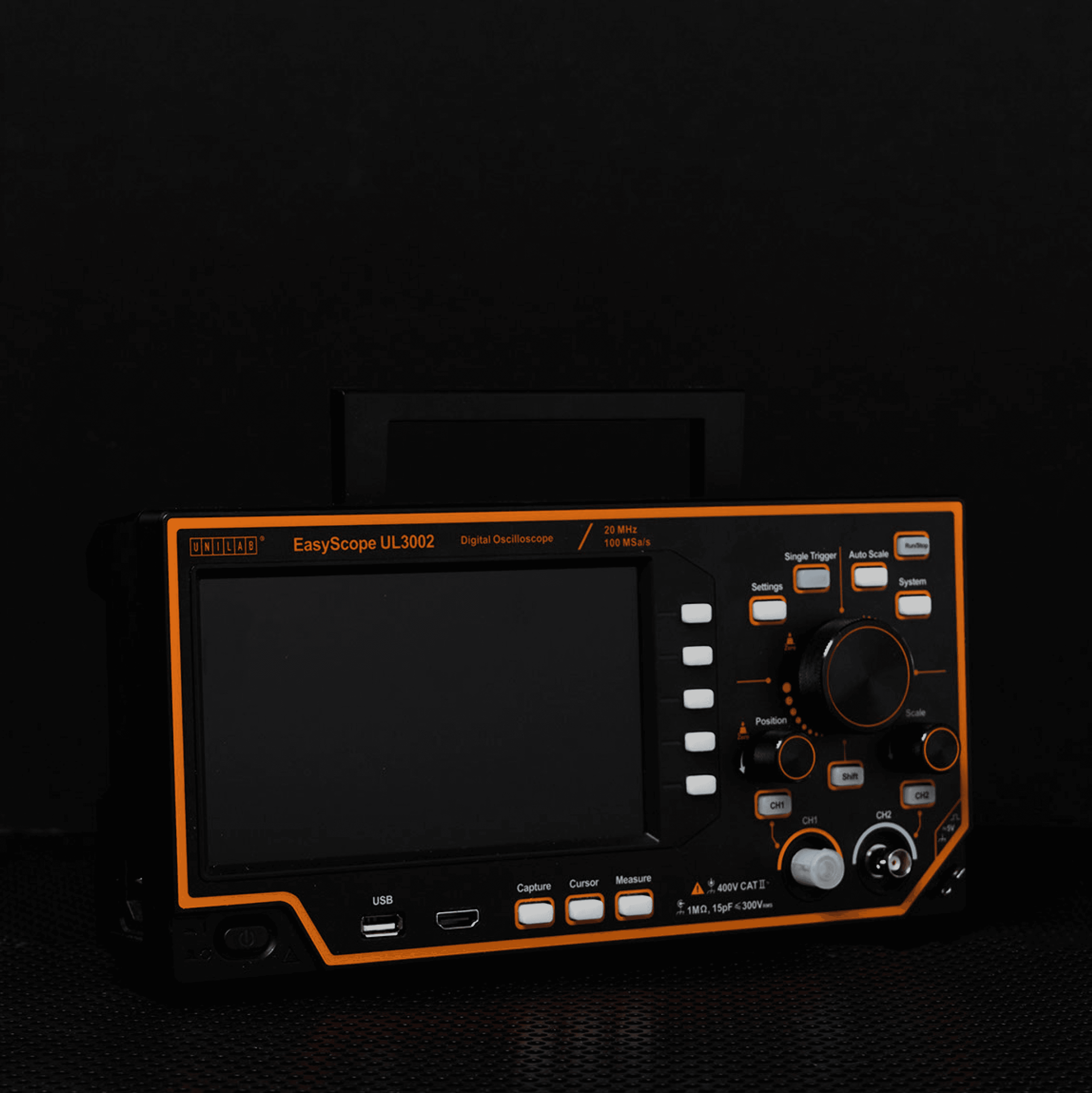

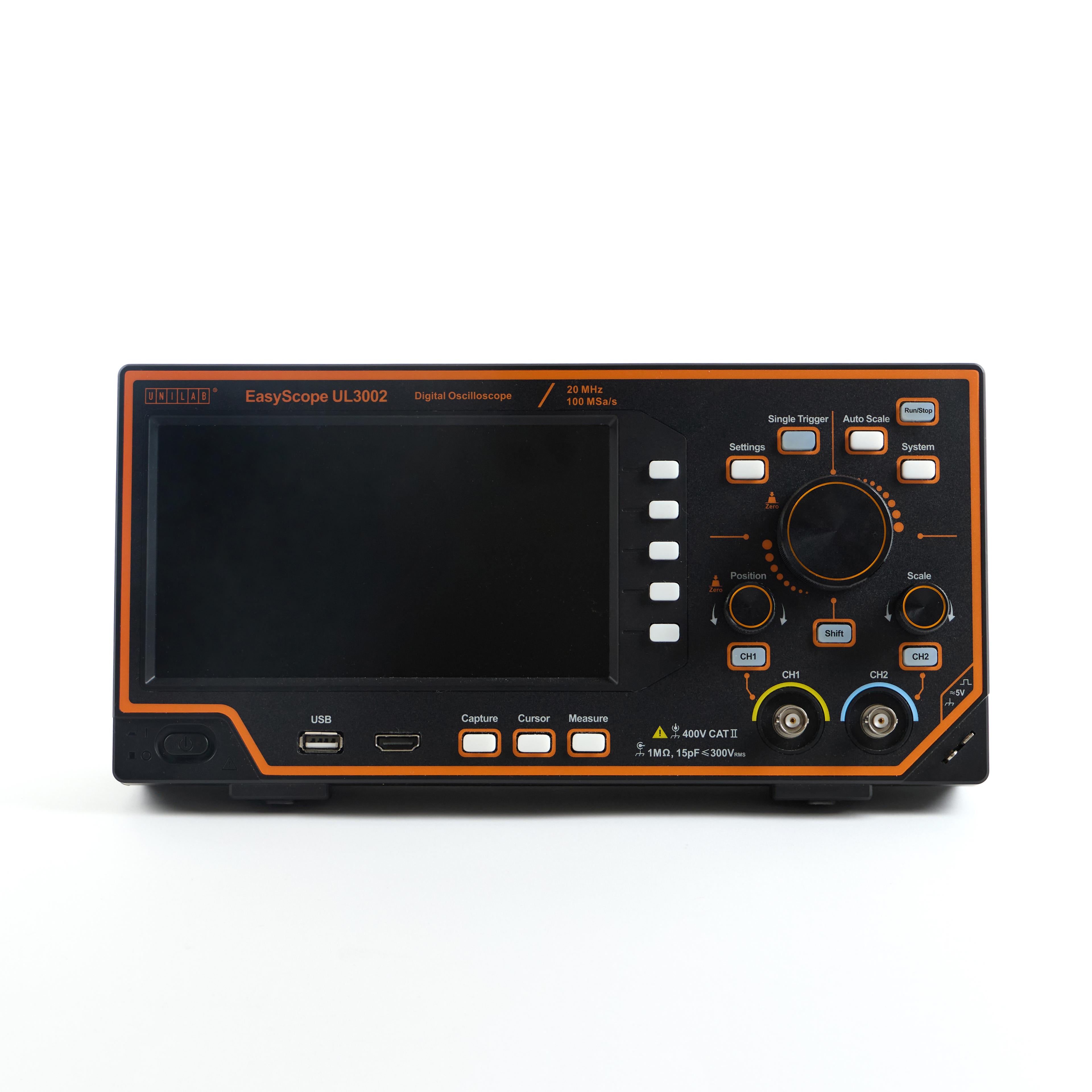

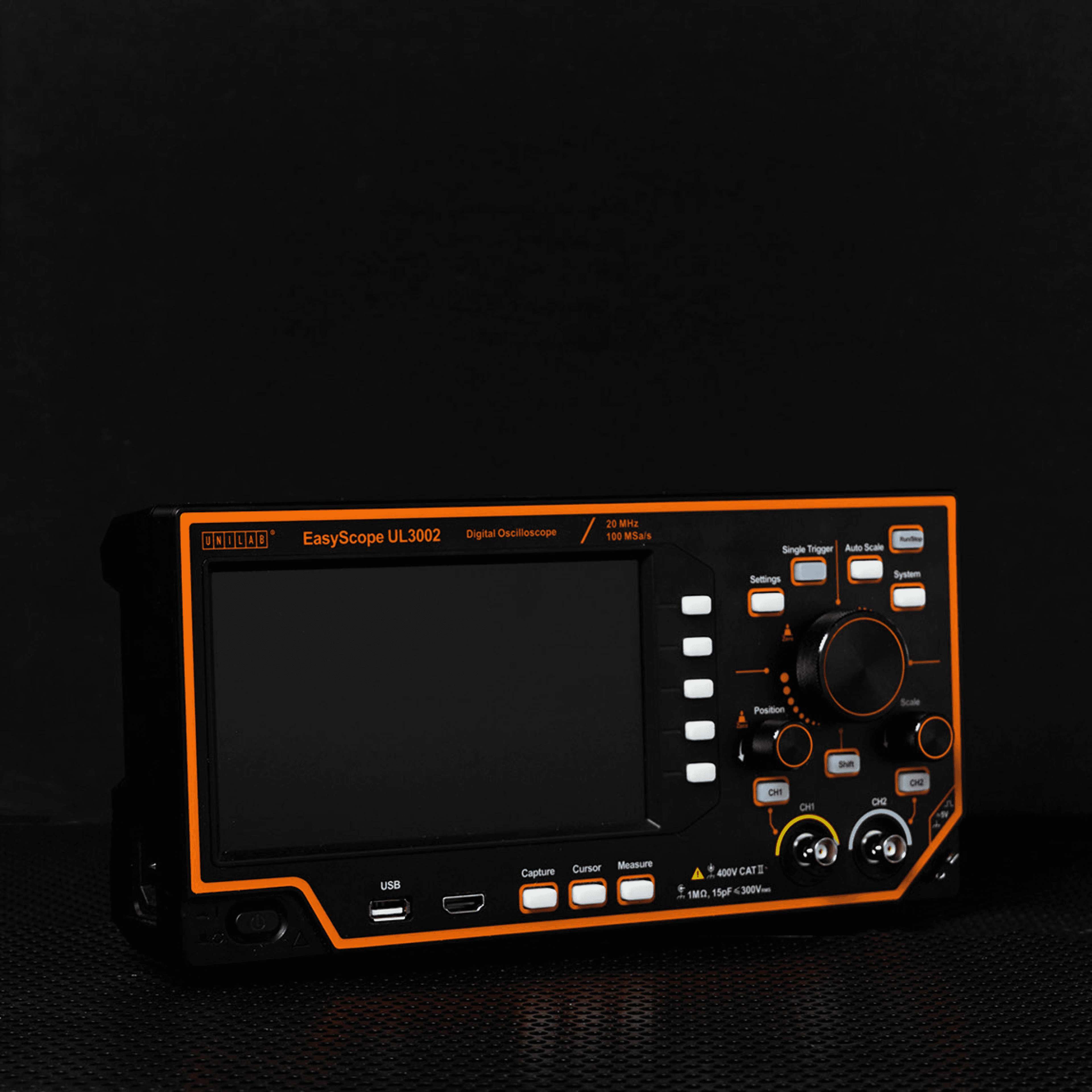

UNILAB EasyScope

The UNILAB EasyScope is a dual channel digital oscilloscope designed specially for the education market as an introductory unit ideal for users who aren’t very familiar with the use of such equipment. With a simplified UI and menu system to aid in quick experiment set-up, this is perfect for required Physics practicals such as Speed of Sound or Charge/Discharge of Capacitor, and for Electronics or Systems and Control projects for circuit troubleshooting. The included manual and provided set-up guides provide easy to follow instructions for setting up the oscilloscope.

Key Features:

• Lightweight

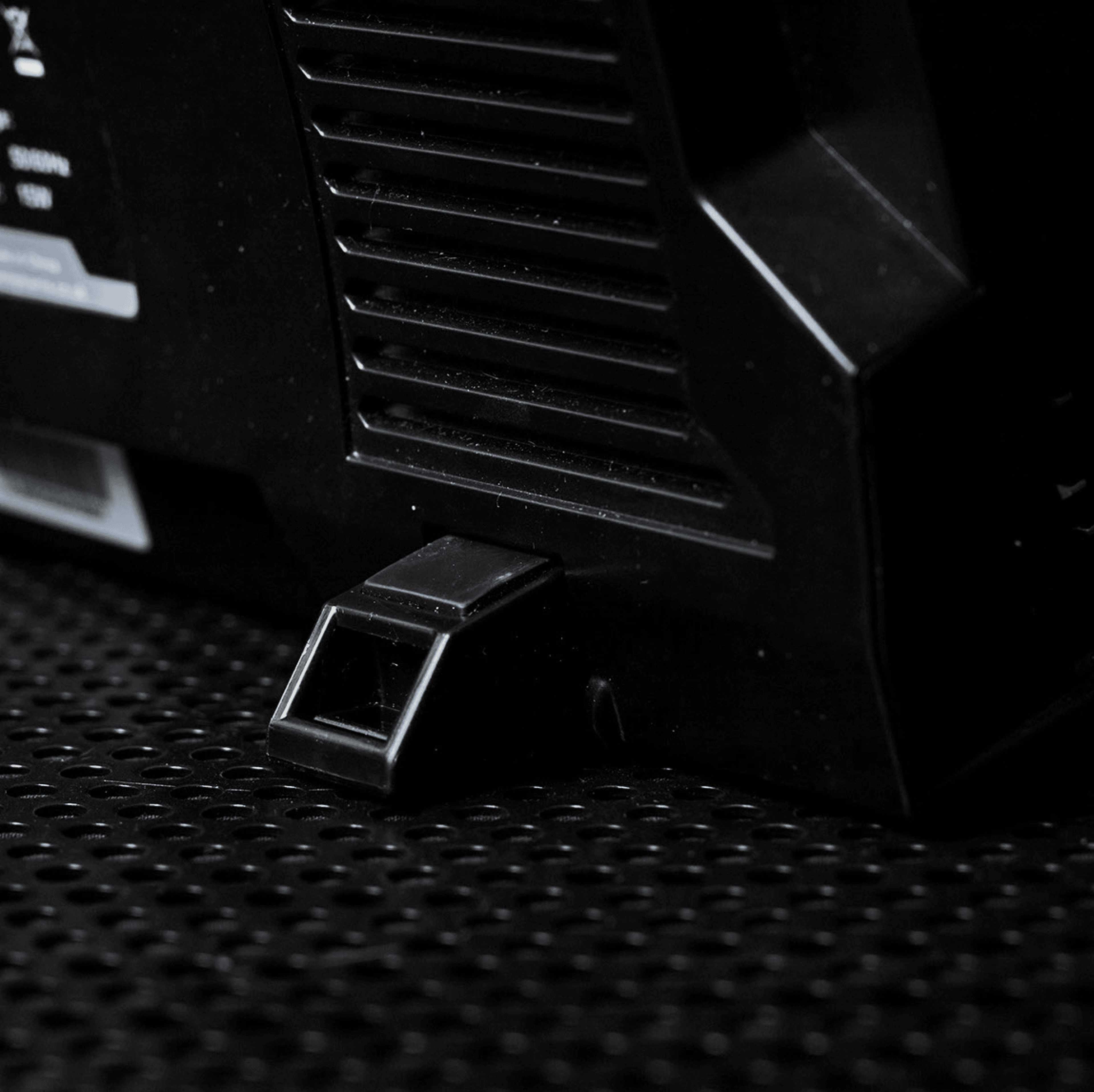

• Adjustable feet for better display viewing

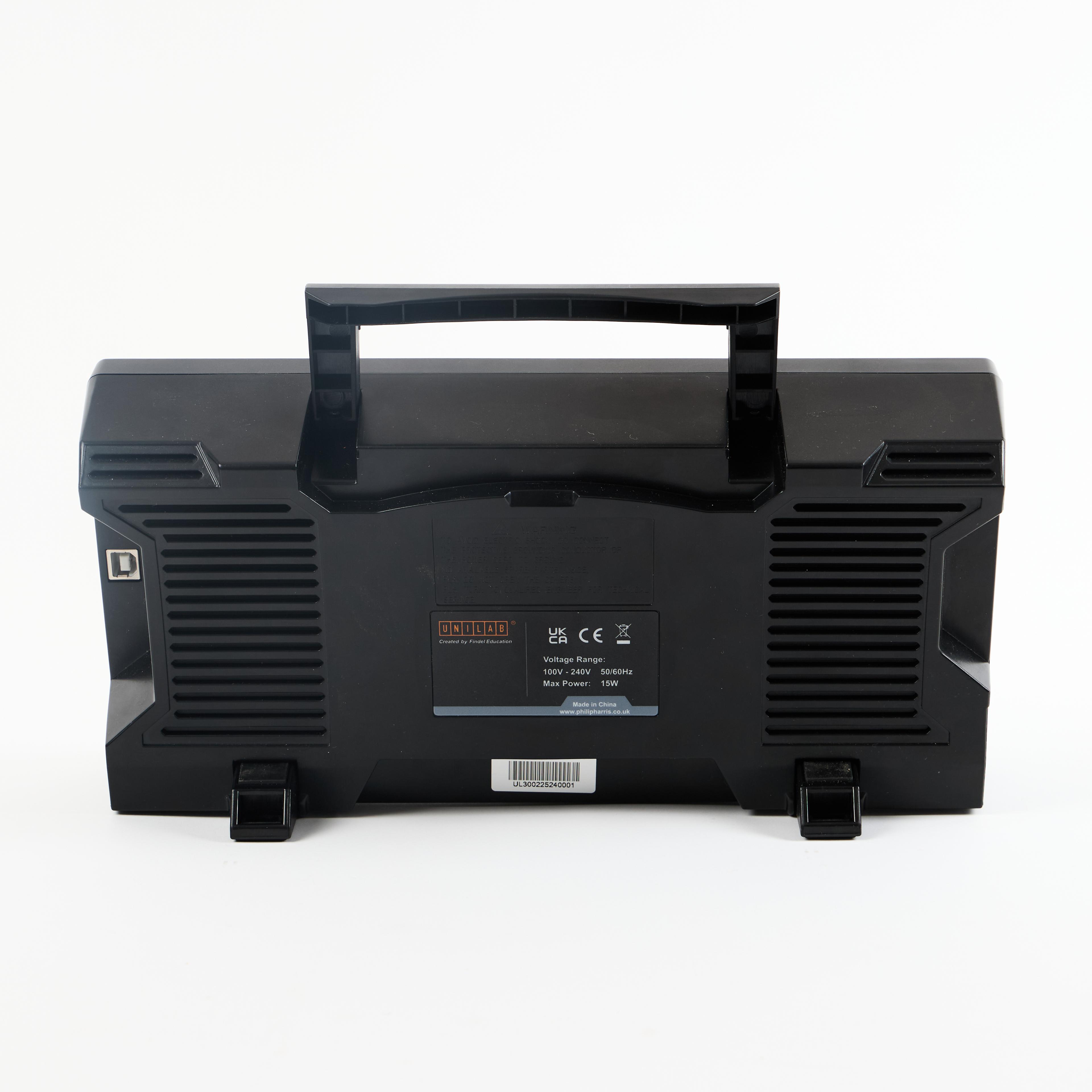

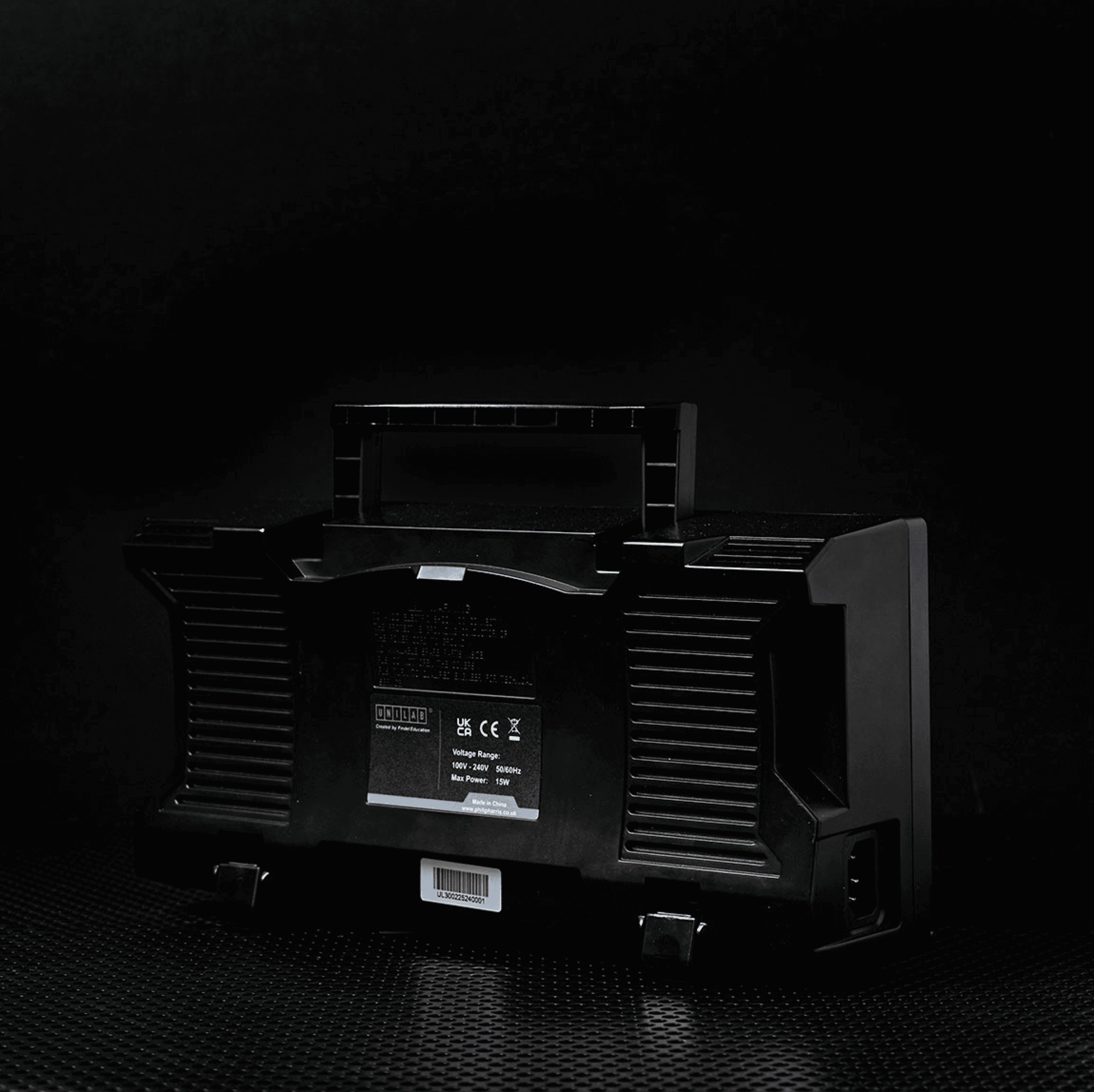

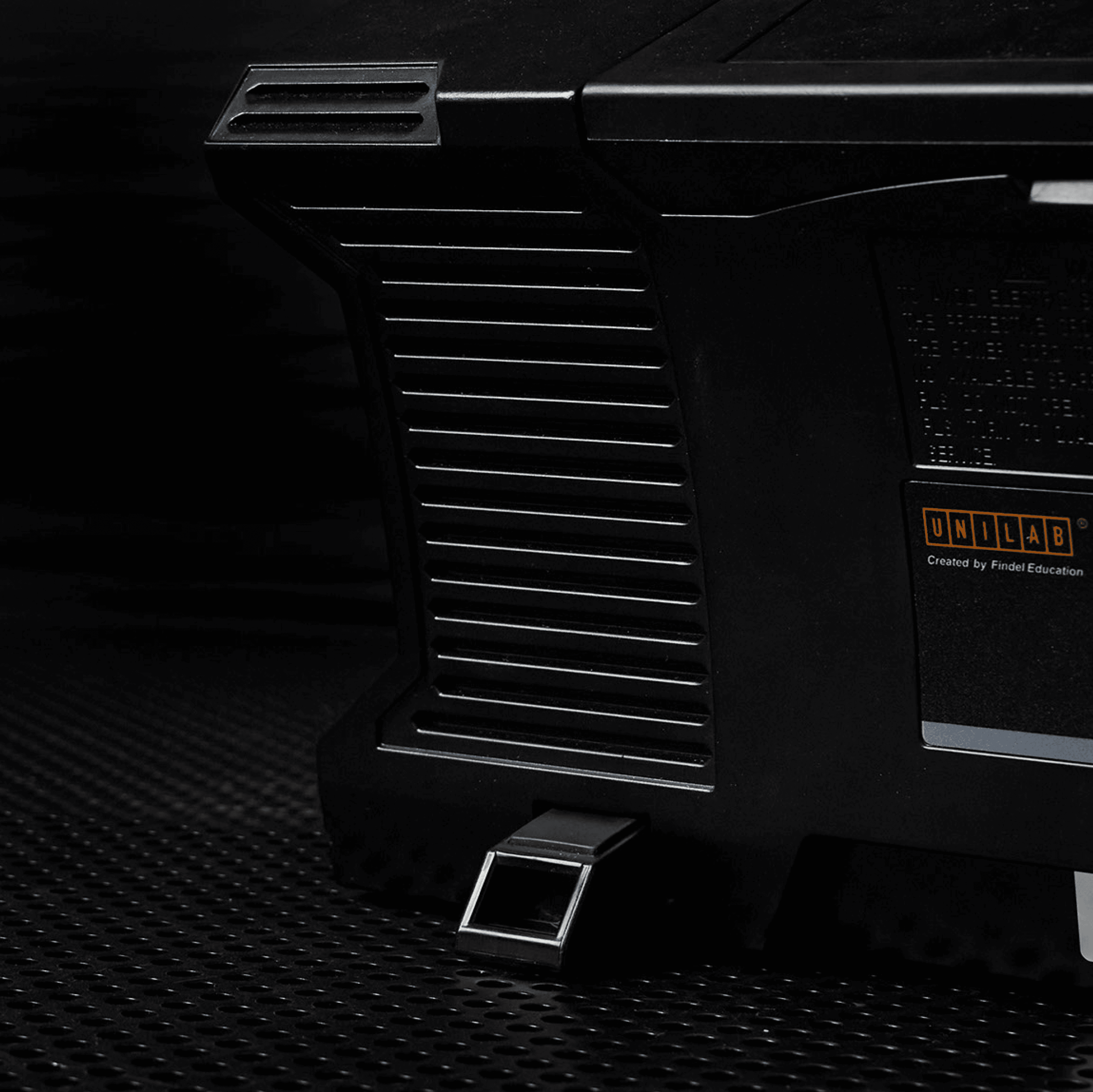

• Foldable Carry Handle
• USB PC Connection, USB 2.0 External memory storage, HDMI
• Automatic cursor measurement and calculations
• Internal storage of up to 16 screens
• AutoScale for fast probe compensation and calibration, and quick focus on key waveform features
• Quick access Single Trigger mode

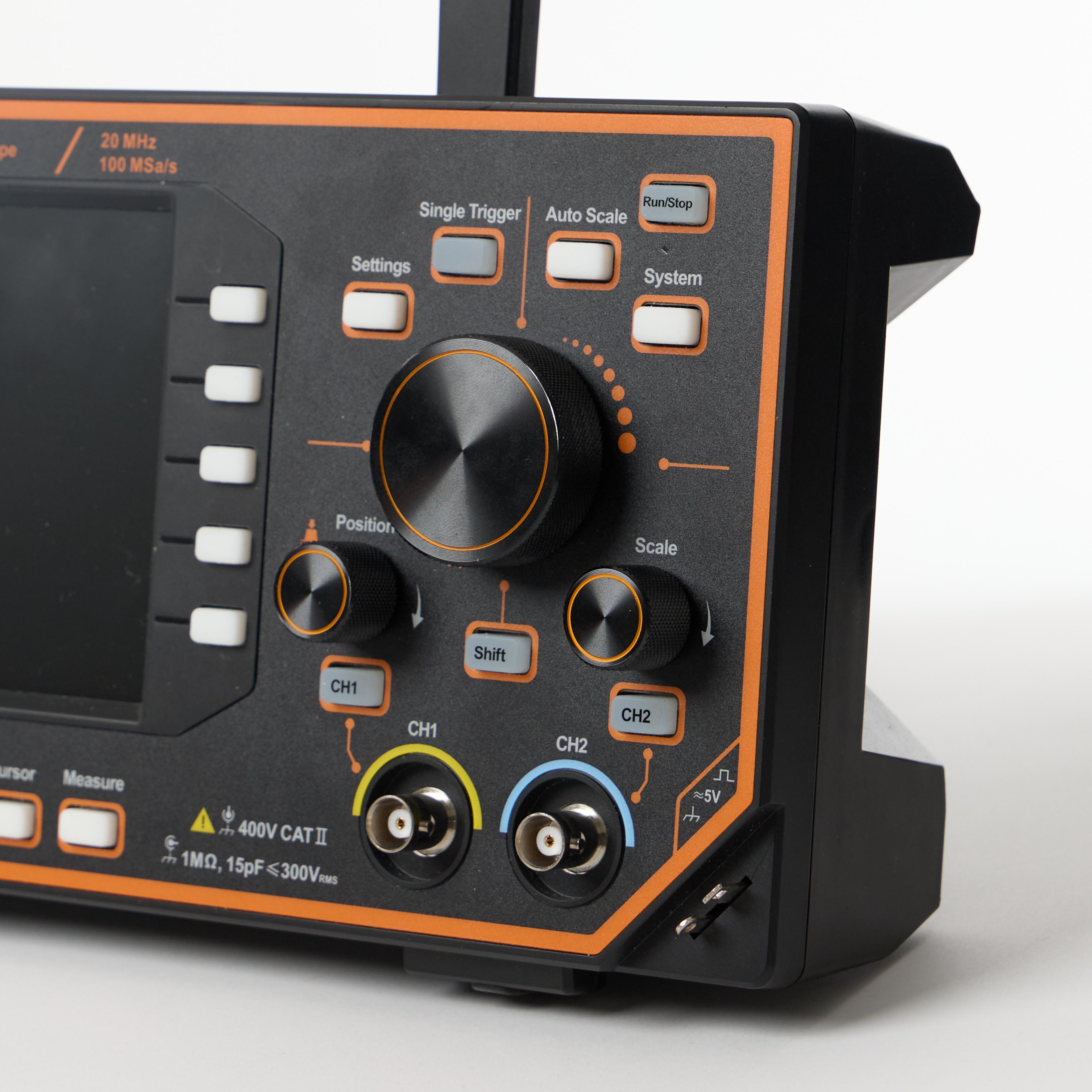

• Single Dial menu and trigger adjustment for faster and easier setup

Specification:

Bandwidth: 20 MHz

Channels: 2

Sampling: 100 MSa/s

Display: 7" colour TFT display 800x480 pixels

Memory: 10K

Maximum input voltage: 400V (peak-to-peak)

Time base: 5 nS / Div at 100 s / Div

Cursors: Voltage, Time

Measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Rising Edge Delay, Falling Edge Delay, Cycle RMS, Cursor RMS, Screen Duty, Phase

Interfaces: USB PC Connection, USB for memory sticks, HDMI for casting to large display

Dimensions: approx. (W)300mm x (H)150mm x (D)70mm

Weight: approx. 840g
