BMS 100-FL LED Microscope - 230V
Product code: PP00061532
Out of stock - Delivery expected in 6 weeks.
£125.00 exc. VAT
£150.00 inc. VAT
Product code: PP00061532
Out of stock - Delivery expected in 6 weeks.
£125.00 exc. VAT
£150.00 inc. VAT
The BMS 100FL microscope is the one stop solution for basic educational microscopy for students in Key Stages 3 and 4. Combining fantastic optics with an extreme strong microscope stand. All parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and anti fungus coating on the optical (glass) parts.
These microscopes can be used with mains power, or batteries can be used to enable mobile use:
- 100~230 V connection through the included power cable
- Rechargeable AA batteries x3 - charge automatically while connected to the electrical power (not included): B8R02103
- Standard non-rechargeable AA batteries x3 - remove before connecting to mains power (not included): B8R05078
Technical specifications:
- Optical System: finite optical system, 160 mm
- Eyepiece: WF 10x/18 mm with pointer, locked
- Head: monocular, 360º rotatable
- Tube: 45º inclined
- Antibacterial paint: yes
- Antifungus optics: yes
- Nosepiece: triple revolving nosepiece with click stops
- Objectives: DIN achromatic 4x/0.10, 10x/0.25 and 40x/0.65 (spring loaded)
- Focusing mechanism: coarse with slip clutch and fine focussing knobs with slide protection
- Fine focus precision: 2 µm minimum increment
- Stage: 110 x 120 mm metal plan stage with 2 stage clips and one finger touch lift
- Stage limit stop: preset and adjustable
- Condenser: fixed, N.A. 0.65 with built-in iris diaphragm and filter holder
- Illumination: new generation High Power LED. Light intensity stepless adjustable through rotary potentiometer.
- Lifespan LED: approx. 50.000 hours
- Magnification: 40x, 100x and 400x. Optional extendable up to 900x.
- Power: 100~230 V/50 Hz
- Double electrical safety: full separation from the main power through DPDT* switch
- With indicator LED on the back to show if main power is switched on and if optional battery is charged
- Multi power use: yes (main power cable, rechargeable batteries, non rechargeable batteries)
- Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
- Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU, UK, CH and USA)
- Length x Width x Height: 175 x 133 x 358 mm
- Warranty: 5 years
- Weight: 2.9 kg

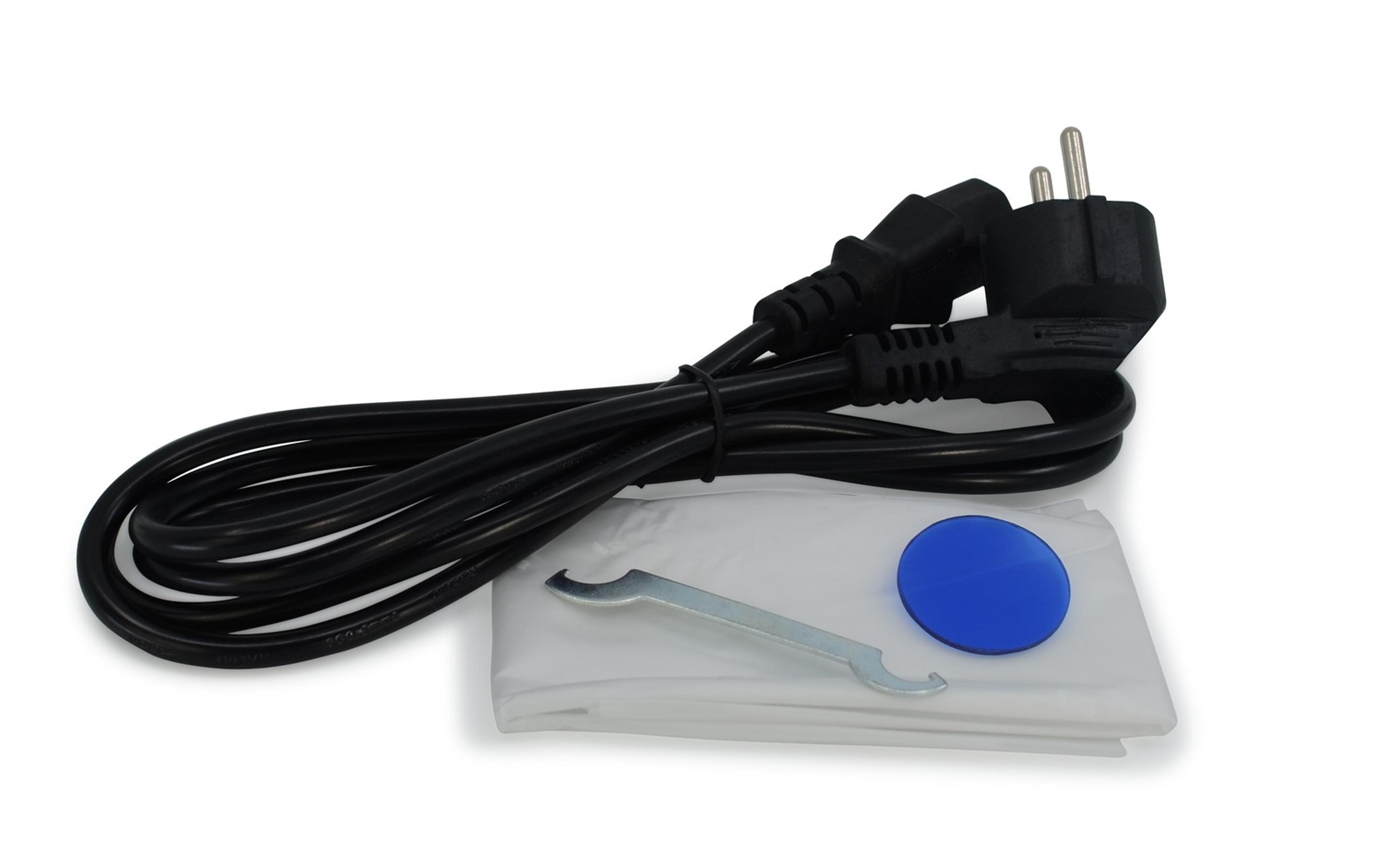

Includes dust cover, manual and tension wrench
*DPDT (double pole, double throw) when switched off, the power is completely shut off.
