BMS 146 FLAsQ LED Microscope - 230V
Product code: PP00061533
Out of stock - Delivery expected in 6 weeks.
£175.00 exc. VAT
£210.00 inc. VAT
Product code: PP00061533
Out of stock - Delivery expected in 6 weeks.
£175.00 exc. VAT
£210.00 inc. VAT
The BMS 146 FLAsQ microscope offers students a more advanced option for their microscopy journey. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts. It has a reversed nosepiece to enhance ergonomics, lens safety and user experience.
These microscopes can be used with mains power, or batteries can be used to enable mobile use:
100~230 V connection through the included power cable

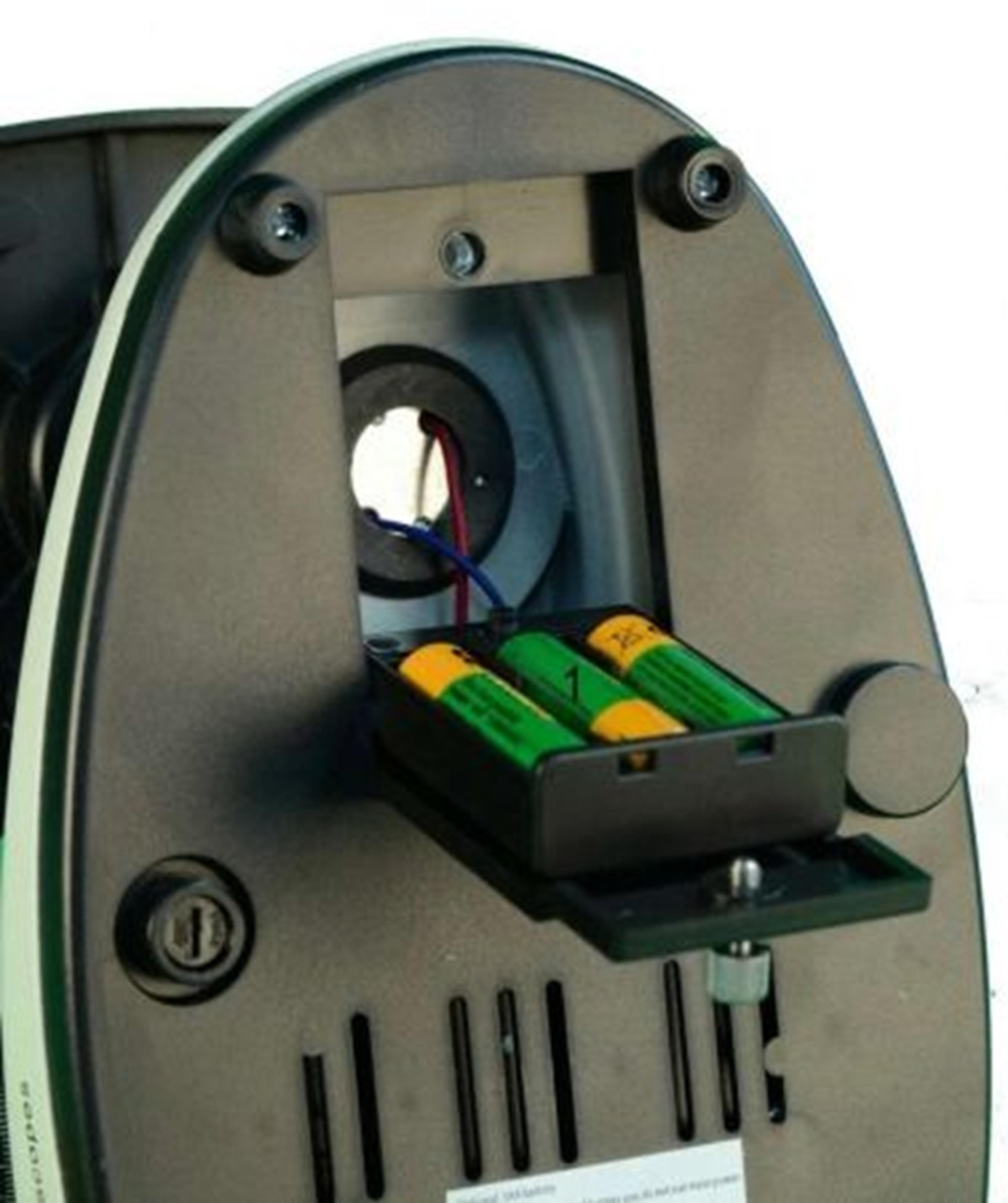

Rechargeable AA batteries x3 - charge automatically while connected to the electrical power (not included): B8R02103
Standard non-rechargeable AA batteries x3 - remove before connecting to mains power (not included): B8R05078
Technical specifications:
- Optical System: finite optical system, 160 mm
- Eyepiece: WF 10x/18 mm with a pointer, locked
- Head: monocular, 360º rotatable
- Tube: 45º inclined
- Antibacterial paint: yes
- Antifungus optics: yes

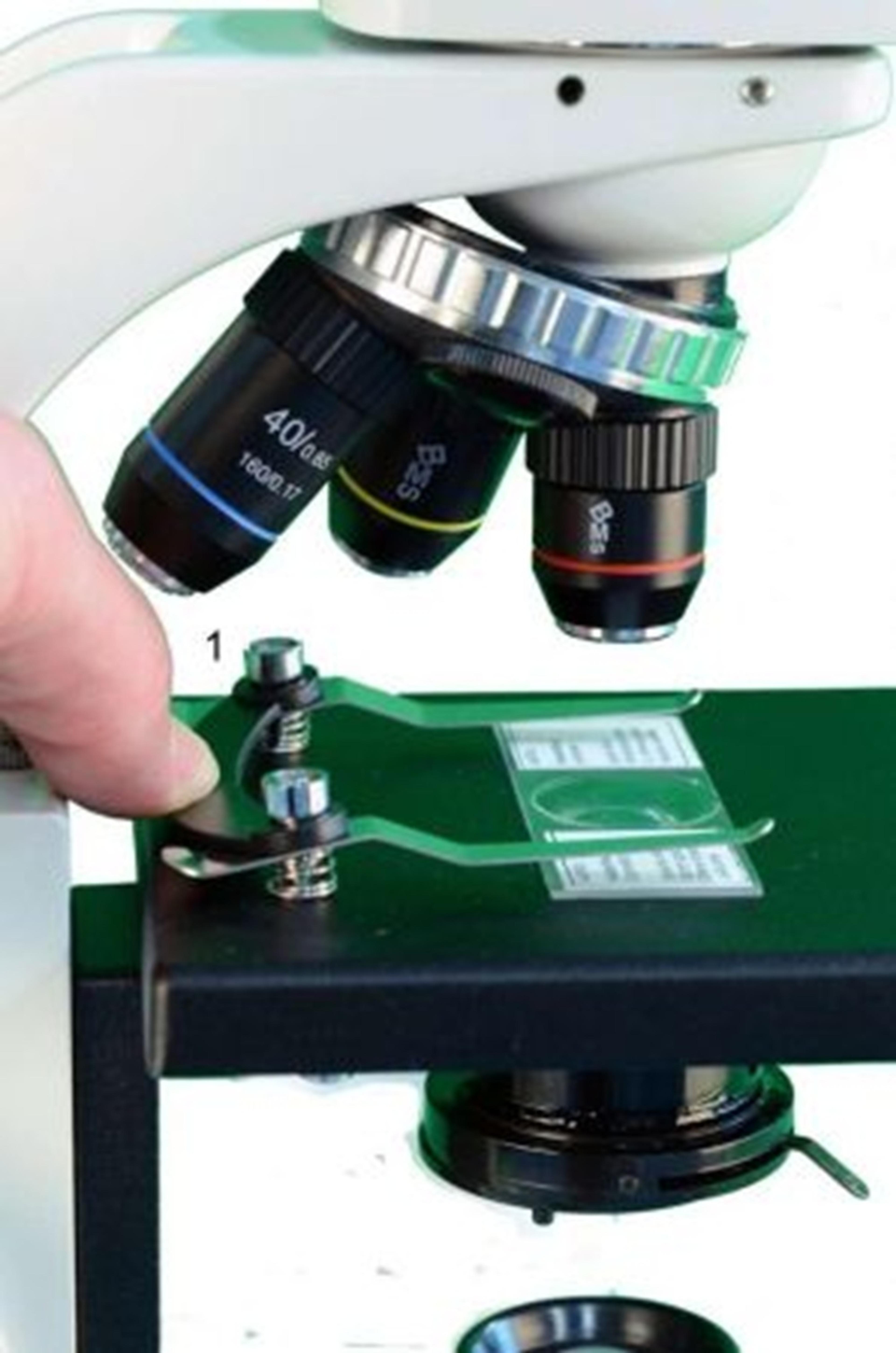

- Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted
- Objectives: DIN achromatic 4x/0.10, 10x/0.25 and 40x/0.65 (spring loaded)
- Focusing mechanism: dual coaxial coarse and fine focus controls
- Fine focus precision: 2 µm minimum increment
- Stage: 120 x 120 mm metal plan stage with 2 stage clips and one finger touch lift
- Stage limit stop: preset and adjustable
- Condenser: Spiral condensor with a long adjustment lever, N.A. 1.25 with built-in iris diaphragm and filter holder
- Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer.
- Lifespan LED: approx. 50.000 hours
- Magnification: 40x, 100x and 400x. Optional extendable up to 1500x
- Power: 100~230 V/50 Hz
- Double electrical safety: full separation from the main power through DPDT* switch.

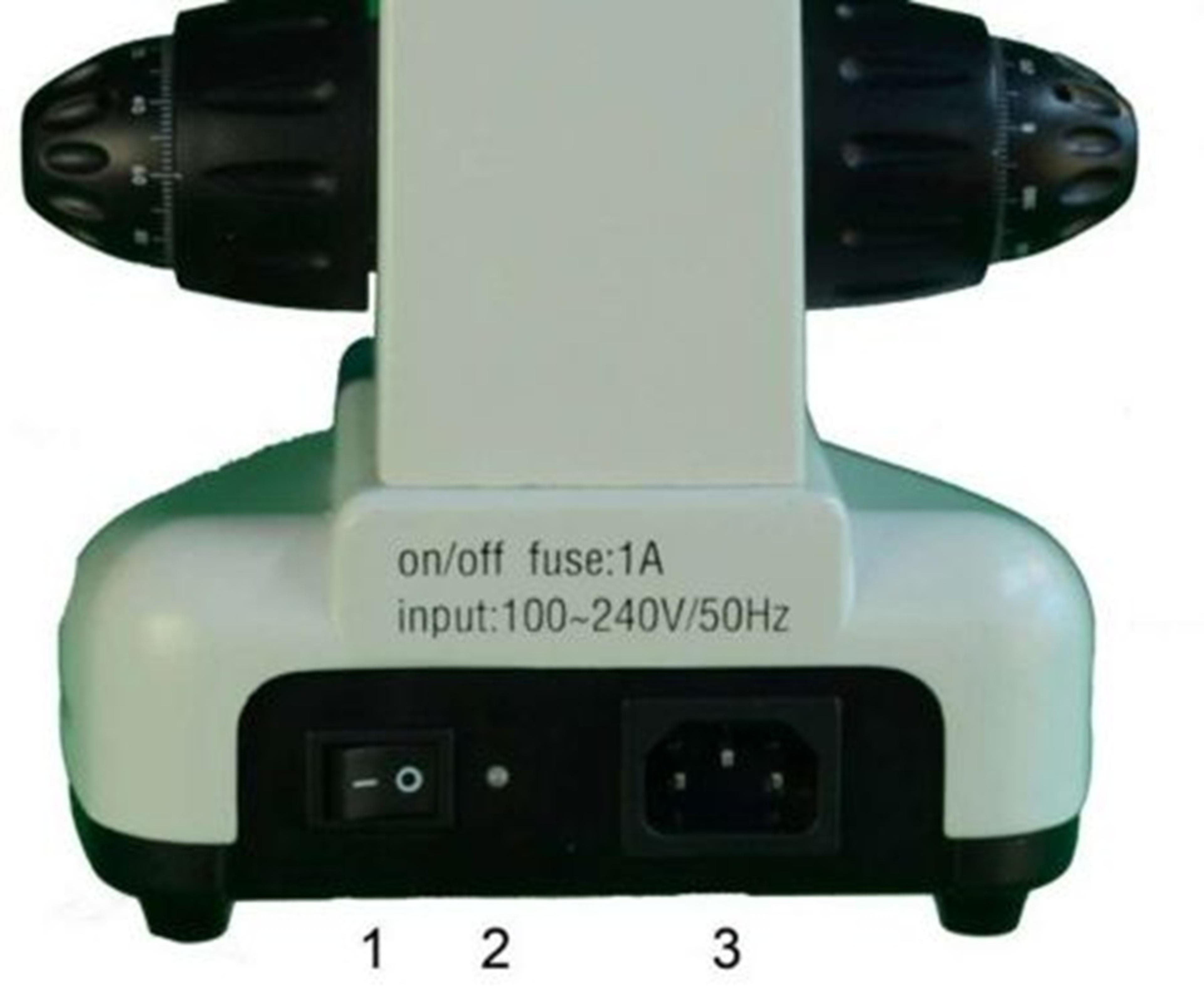

- With indicator LED on the back to show if main power is switched on and if the optional battery is charged
- Multipower use: yes (main power cable, rechargeable batteries, non-rechargeable batteries)
- Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
- Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU, UK, CH and USA)
- Including: dust cover and manual
- Length x Width x Height: 175 x 133 x 358 mm
- Warranty: 5 years
- Weight: 3.1 kg
*DPDT (double pole, double throw) when switched off, the power is completely shut off.
