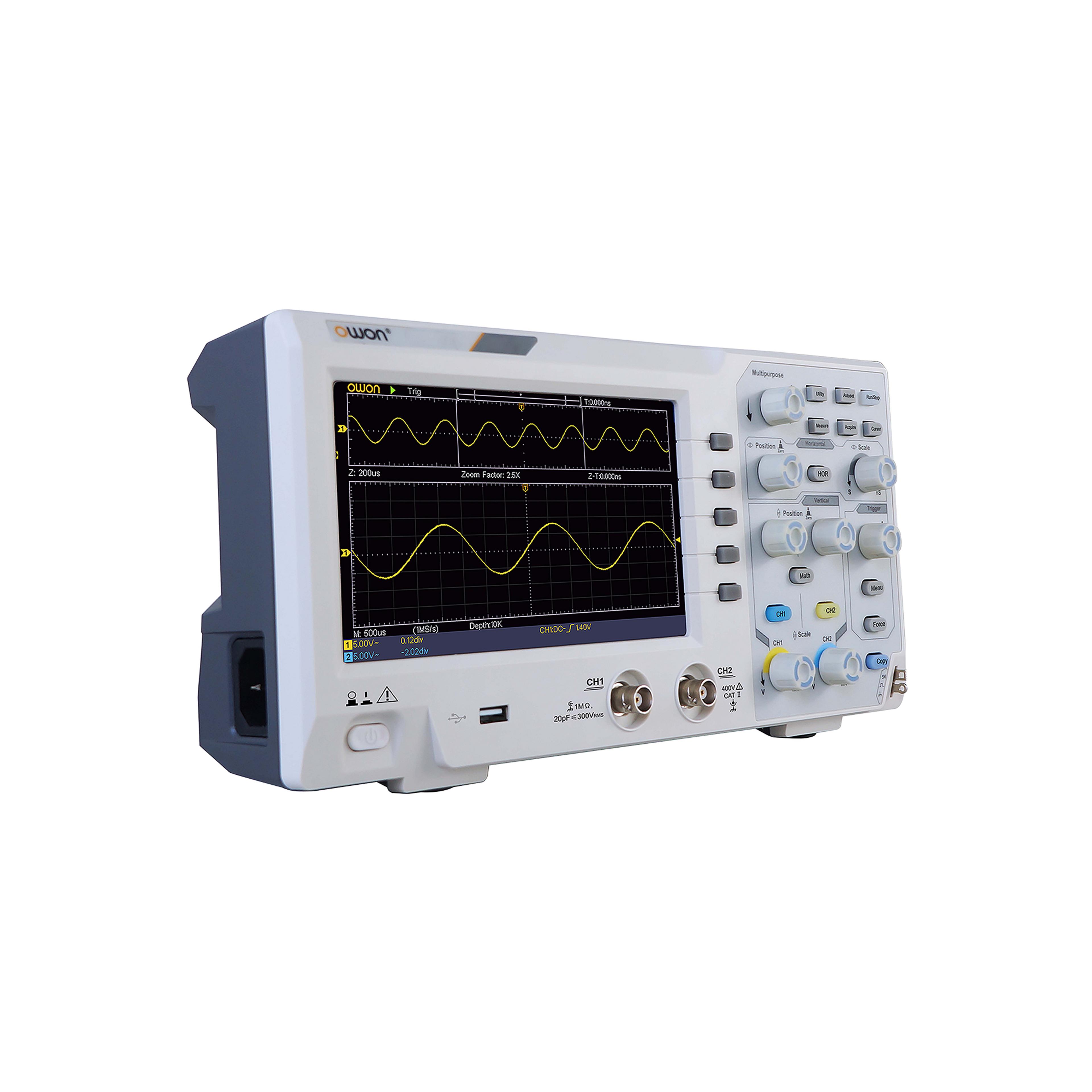

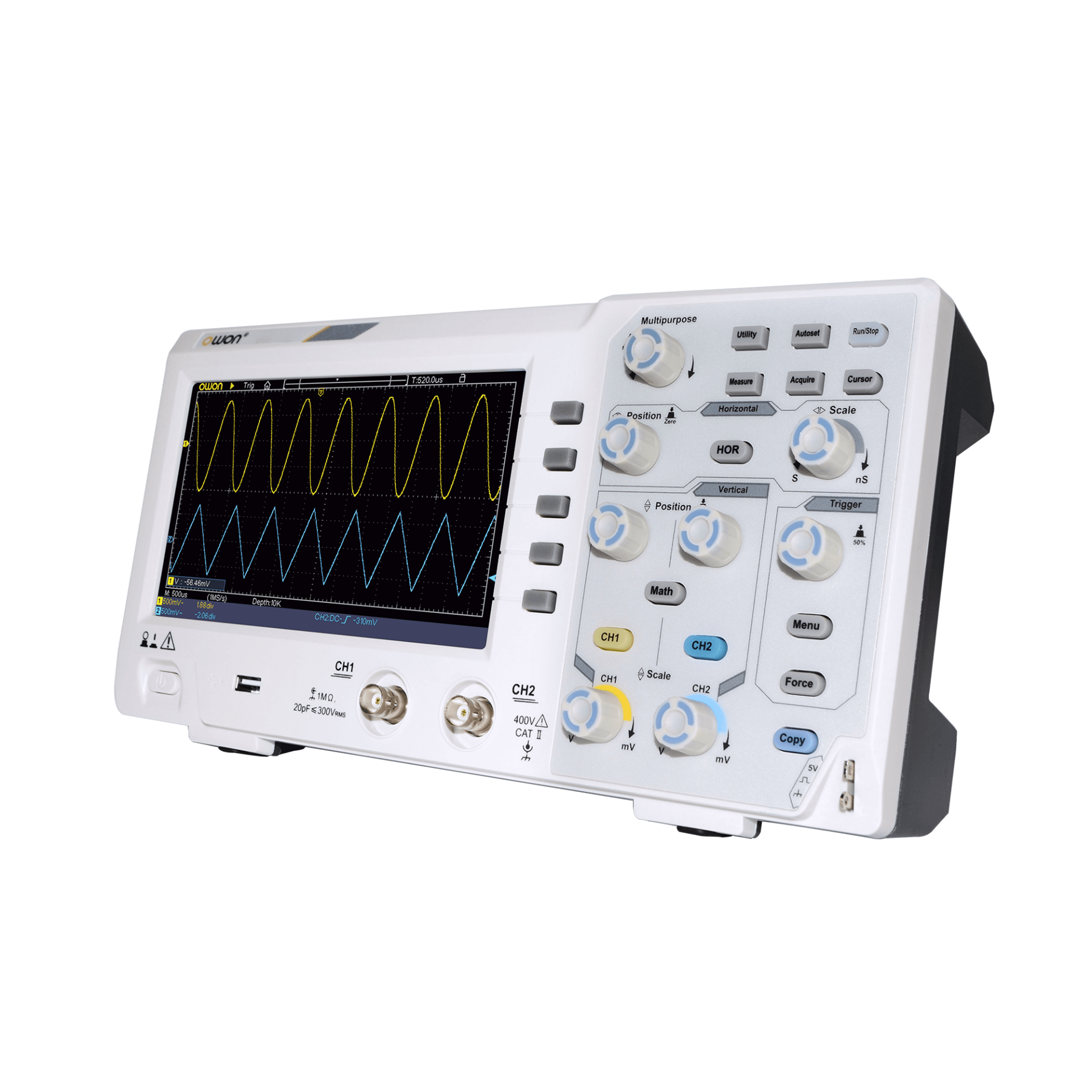

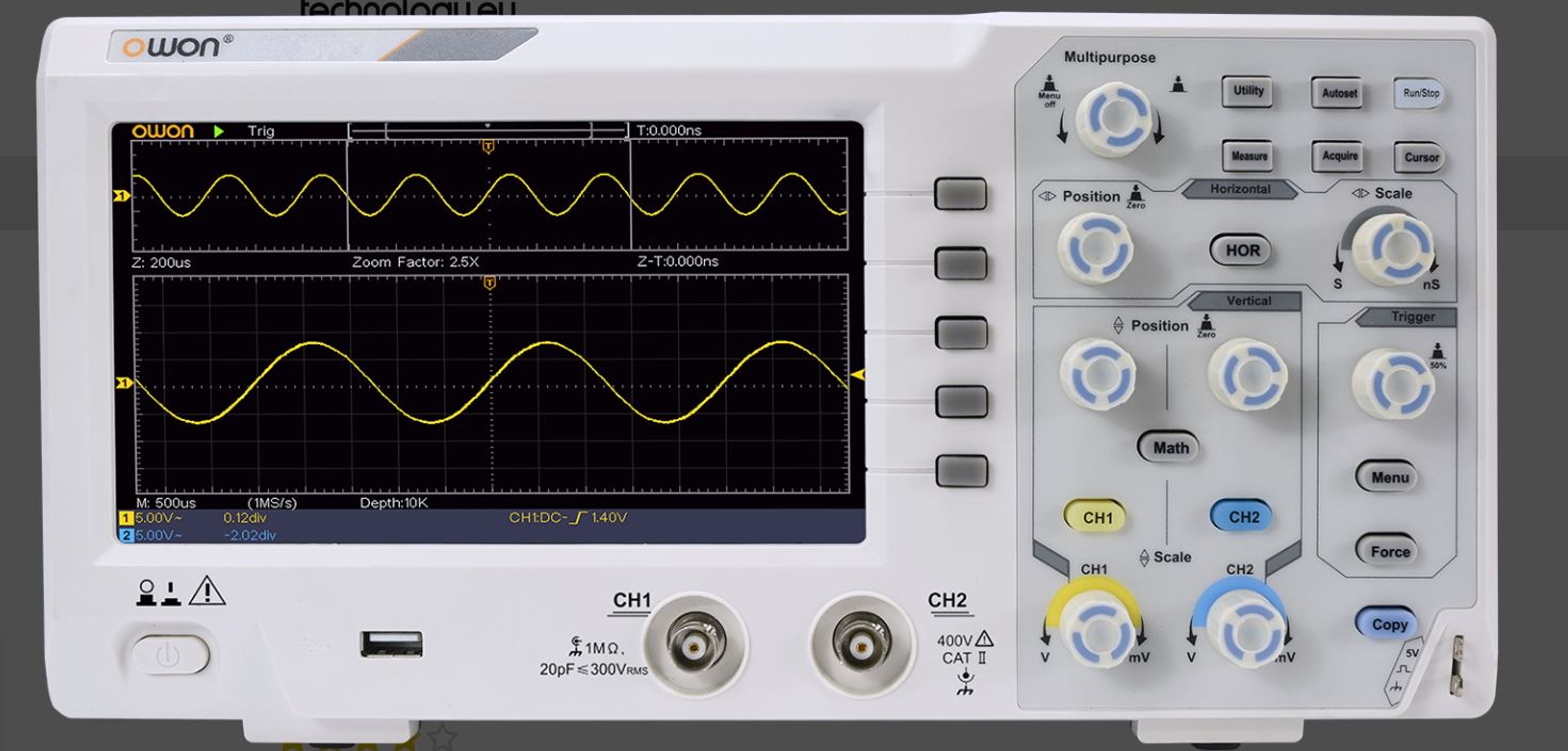

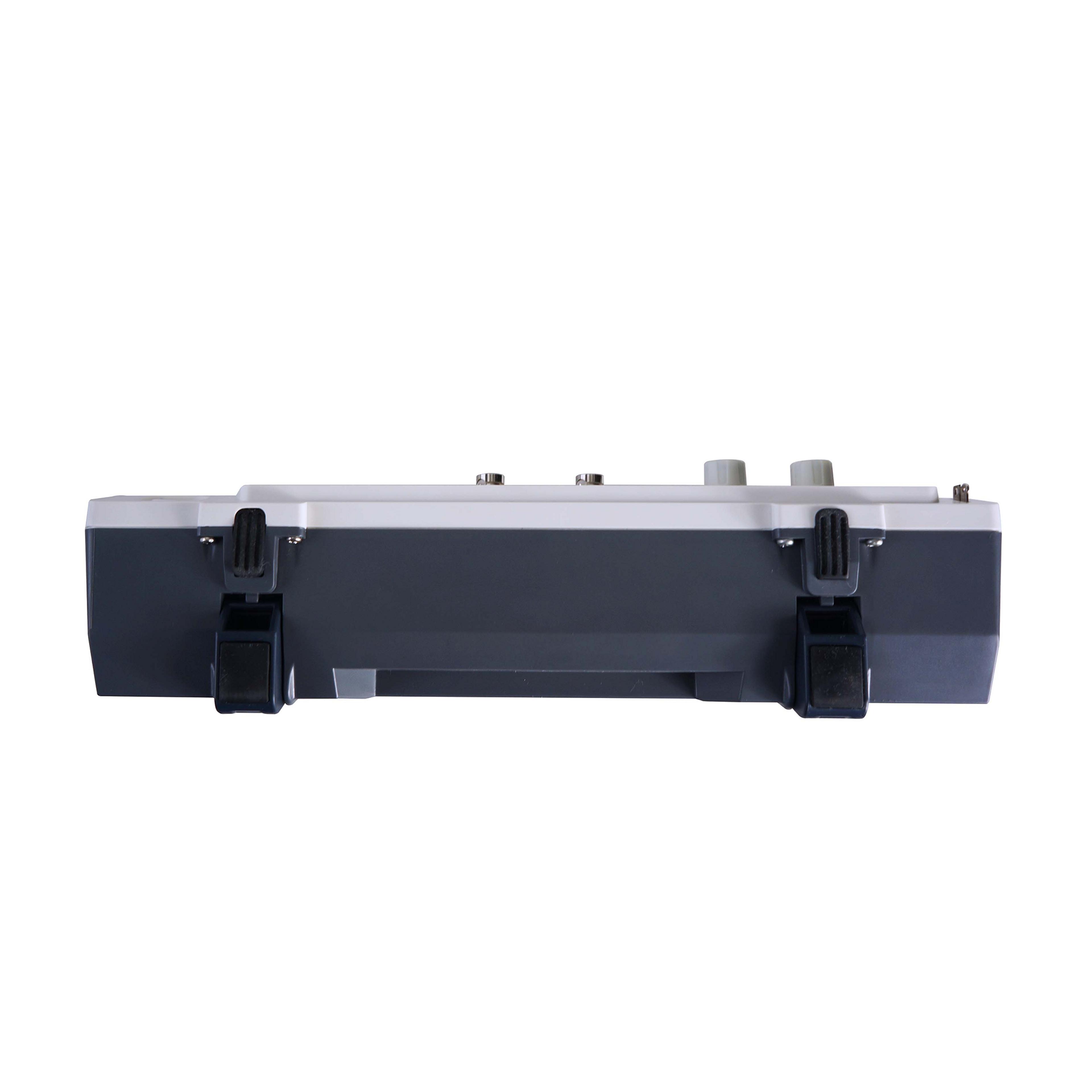

OWON SDS1022 Digital Oscilloscope - Dual Channel - 20MHz

The OWON SDS1022 Digital Oscilloscope is a versatile tool designed for clear and accurate waveform analysis, making it ideal for science lessons and practical demonstrations in secondary schools and colleges. With dual channels and a user-friendly display, it supports both teacher-led demonstrations and hands-on student investigations in physics.

• Specification:

  • Bandwidth: 20 MHz

  • Sampling: 100 MS/s

  • Display: 7" colour TFT display 800x480 pixels

  • Memory: 10K

  • Maximum voltage: 400V (peak)

  • Time base: 5 nS / Div at 100 s / Div

  • Voltage difference And time difference between cursors

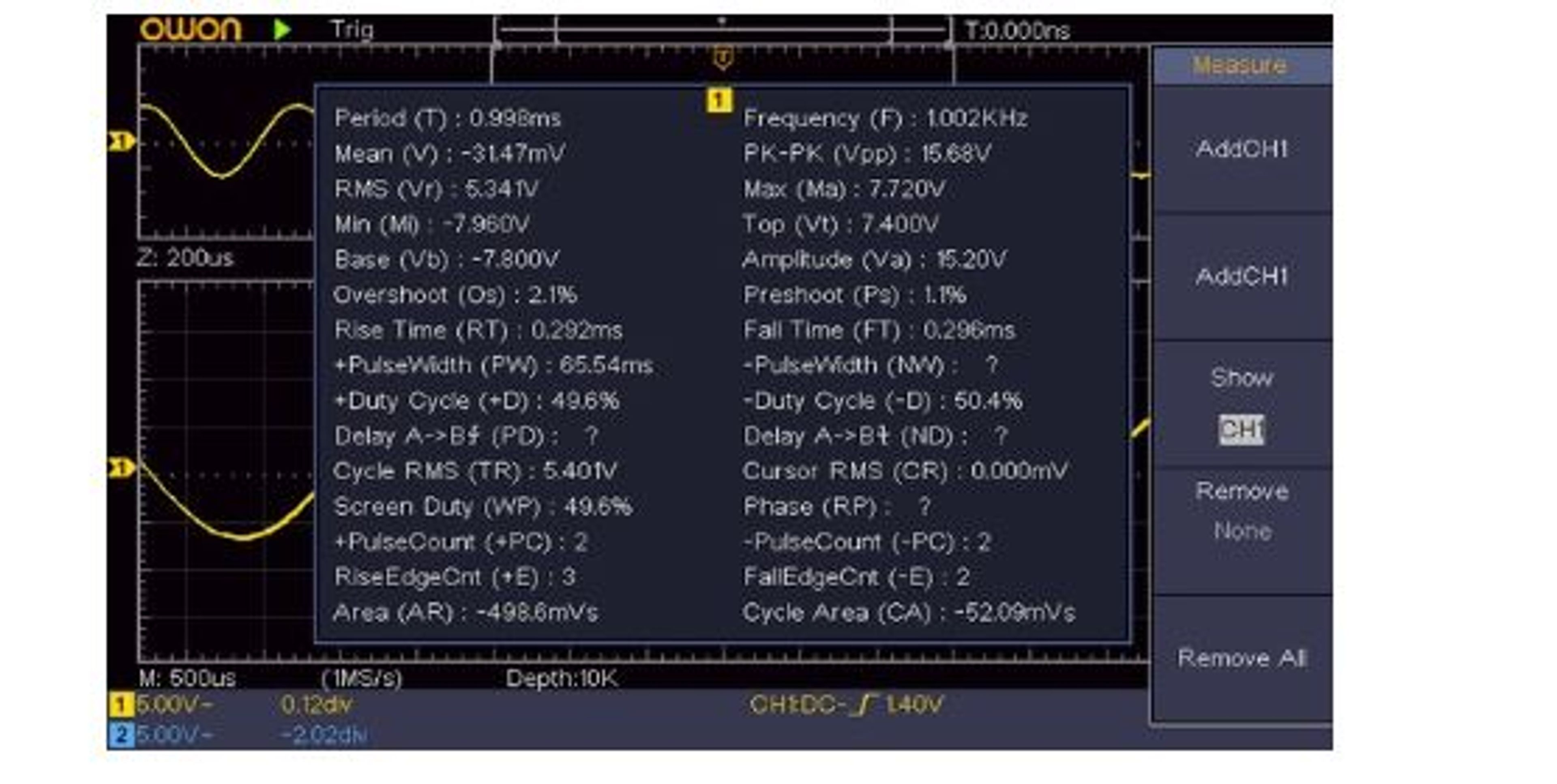

  • Vpp, Vmax, Vmin, Vtop, Vamp, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A? B Rising Edge, Delay A? B Falling Edge, + Width, -Width, + Duty, -Duty

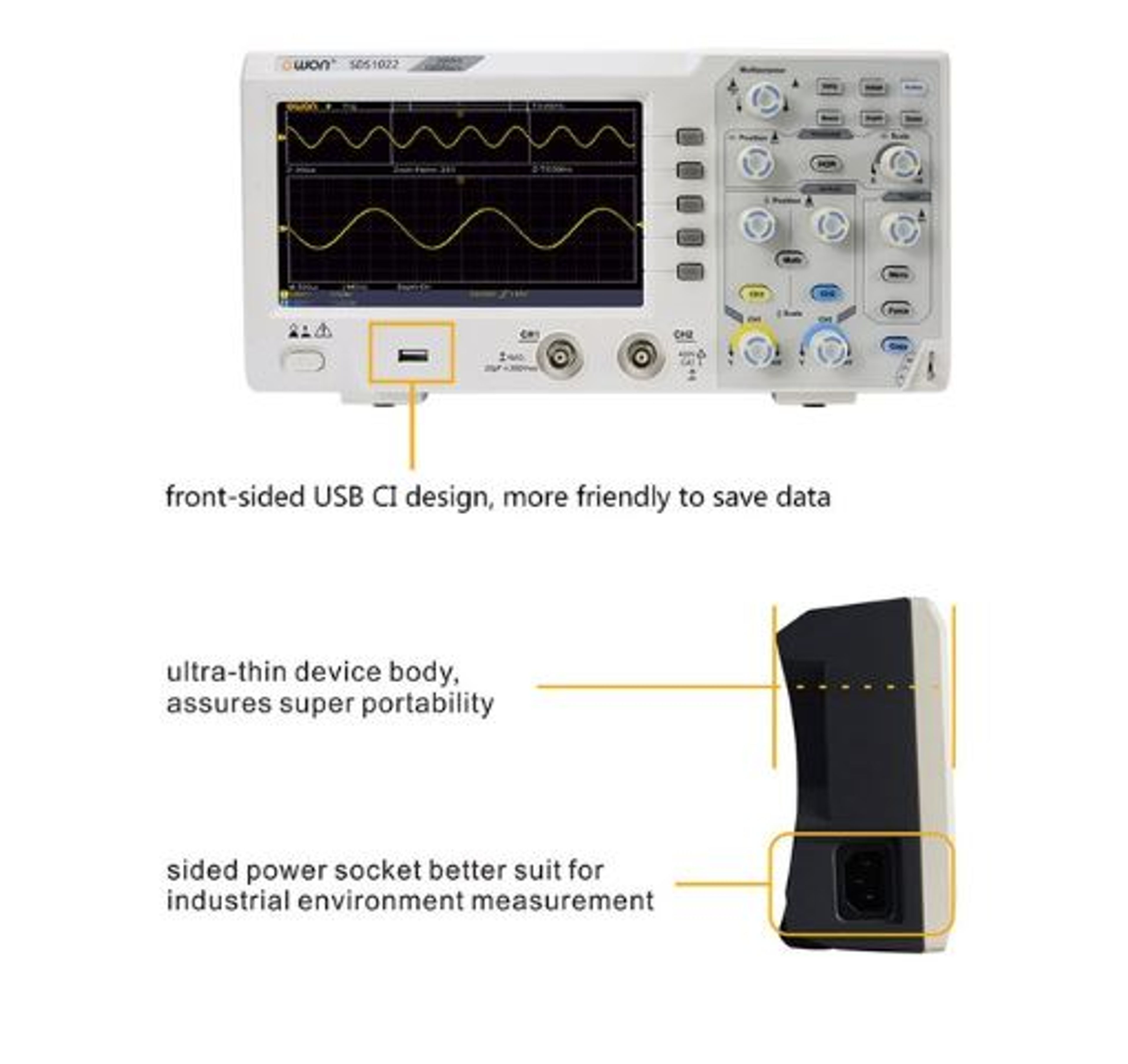

  • Interfaces: USB PC Connection, USB Host for pendrives

  • Dimensions: (W)301mm x (H)152mm x (D)70mm

  • Weight: 1.10kg

  • Shipping Weight 1.6 kg
