BMS WiFi USB CMOS Camera Set - 1Mp

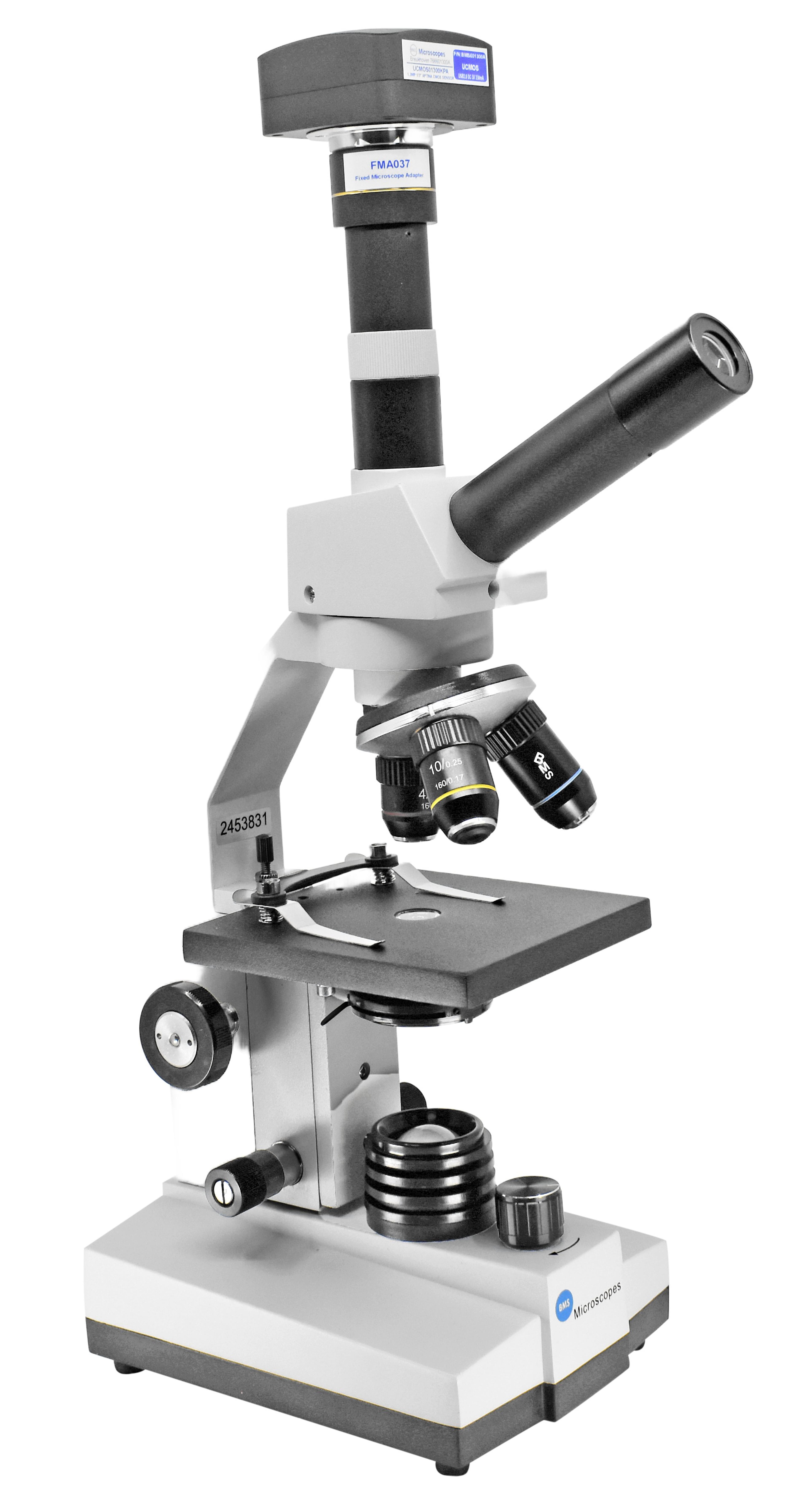

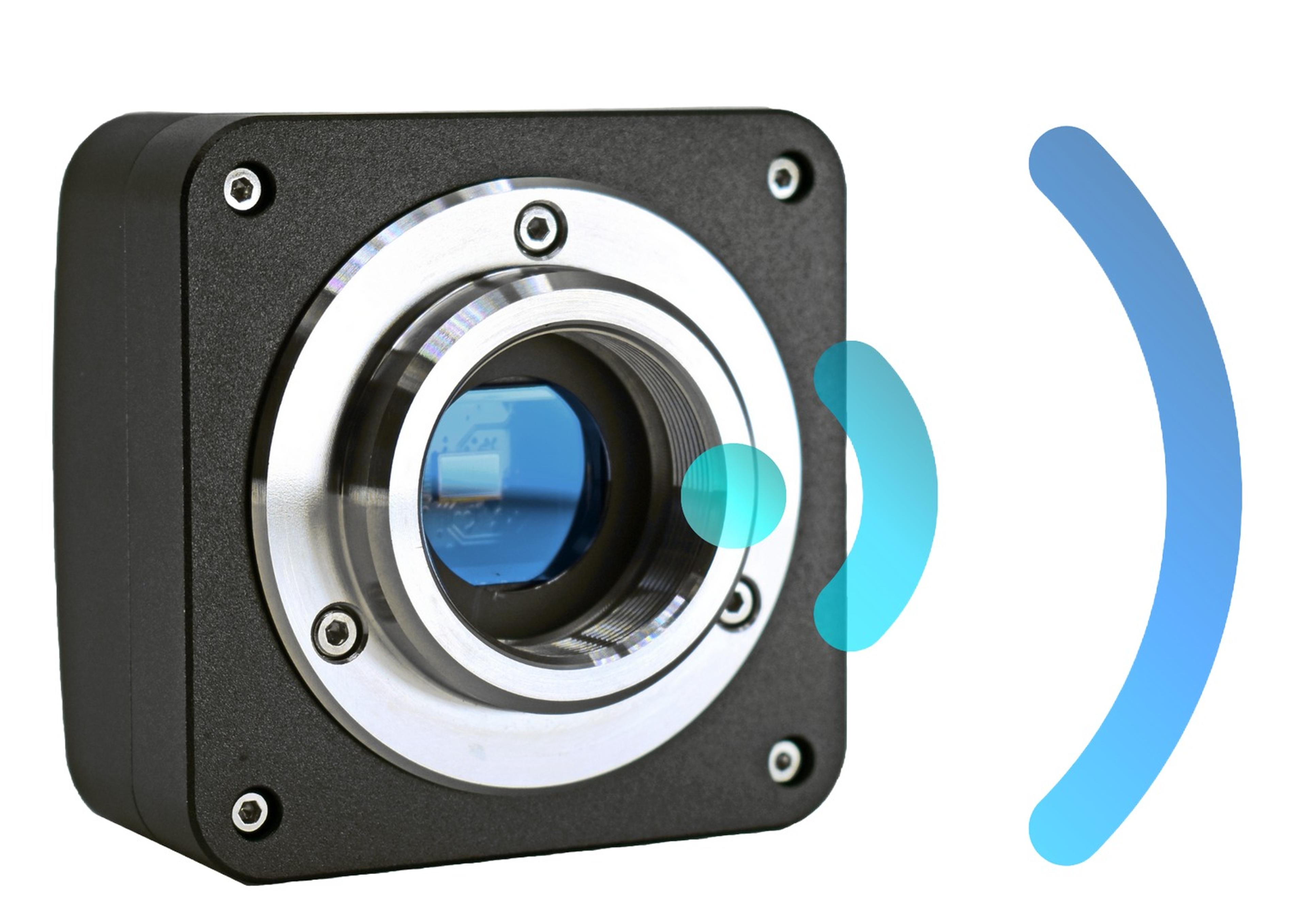

The 1MP WiFi digital camera upgrades any microscope into a digital microscope, allowing wireless image transfer. Ideal for teaching and interactive lab work it steams high resolution images direct to WiFi enabled devices, allowing the specimen image to be screened on computers, tablets and smartphones. The device supports iOS, Android, Linux and Windows operating systems, and includes BMS_pix3 software for image capture, measurement and annotation. It has a robust zinc-aluminium housing and C-mount interface which will ensure reliable performance and seamless integration with any microscope.

USB 2.0 provides dependable data transfer between the camera and any USB compatible device, including PCs, laptops and all-in-one computers. It delivers steady live video and quick image capture, making it ideal for classrooms, laboratories and everyday tasks. With consistent performance and smooth operation, it offers a trusted solution for professional use.

The 1 megapixel sensor captures over 1 million pixels, producing clear images that reveal important details. Ideal for teaching, labs and research, it allows reliable measurements, clear documentation and high-quality images for presentations or reports.

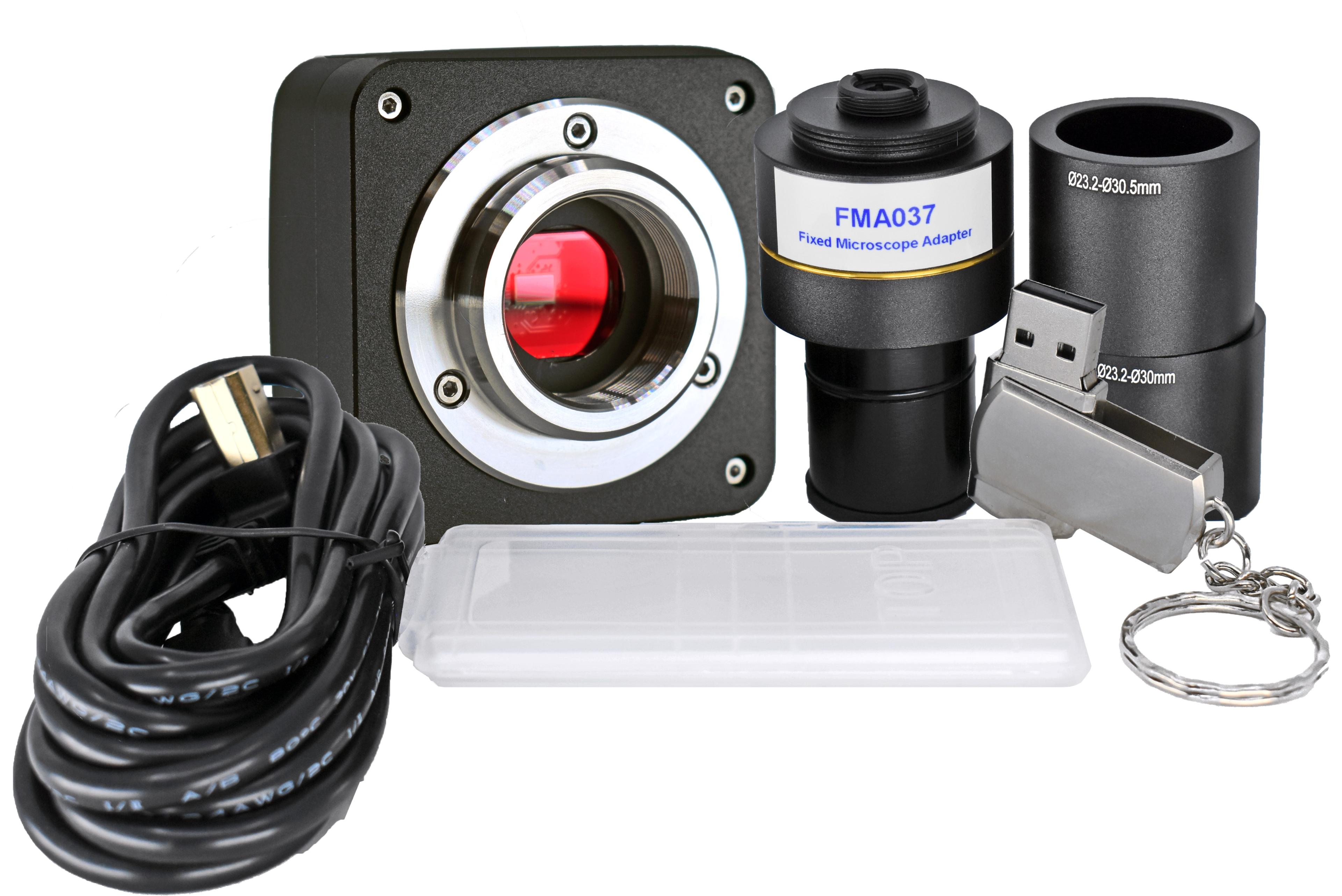

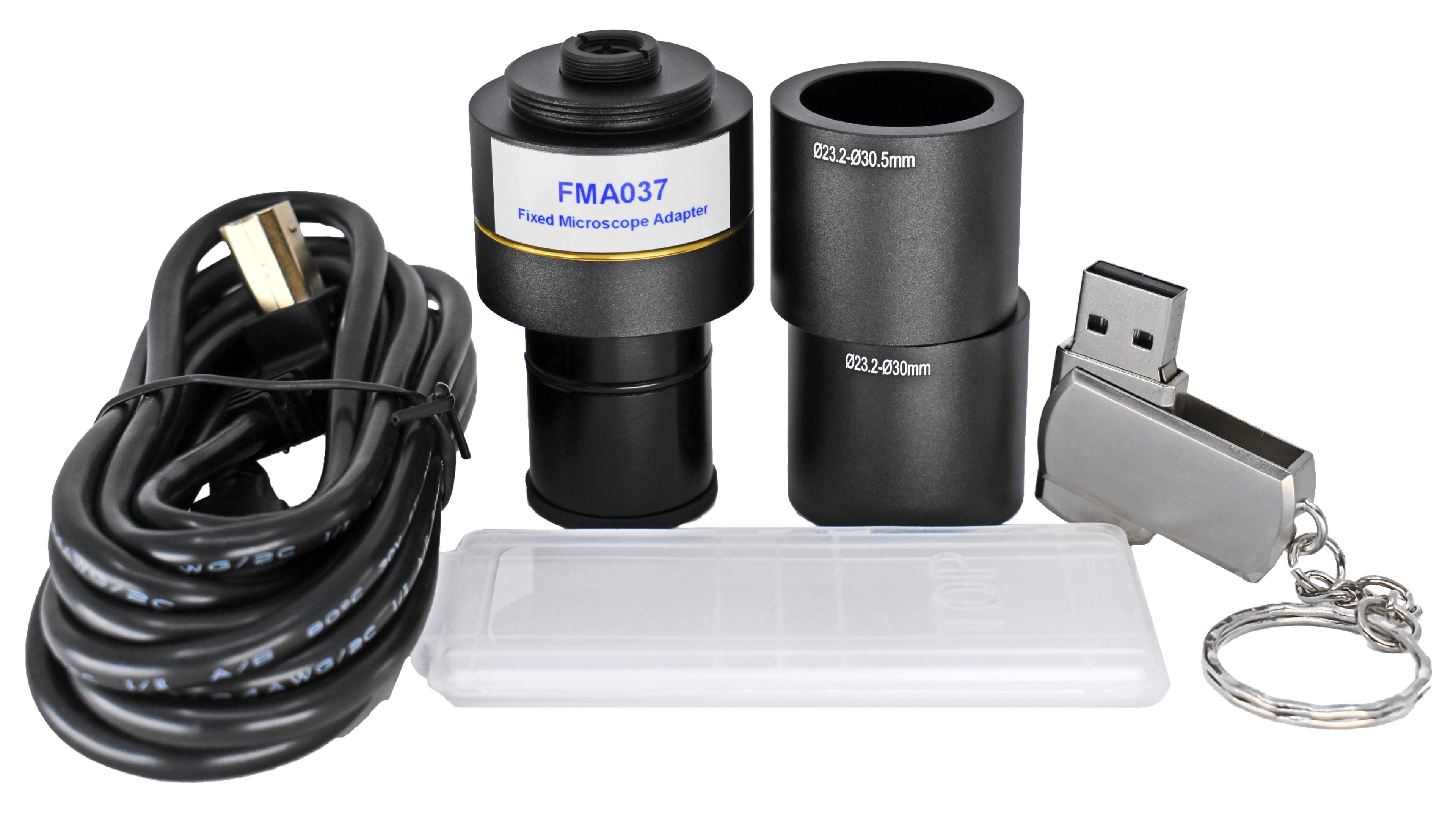

Kit Contents:

• BMS Wifi 1MP USB CMOS Camera
• USB Flash Drive with Software
• Calibration Slide for accurate measurements
• Microscope adapter with Optics
• Tube size adapter 23.2mm → 30.0mm
• Tube size adapter 23.2mm → 30.5mm

Key Features:

• Resolution: 1280 × 720 (1?MP) captures detailed images of specimens, enabling students and researchers to observe structures and record findings
• Sensor: Ultra-high performance Aptina CMOS provides bright, clear imaging for both classroom demonstrations and precise laboratory work
• Sensor Size: 1/3" (4.60 × 3.70?mm), optimized for microscopy, balancing field of view and image clarity
• Pixel Size: 3.6 × 3.6?µm ensures sharp, well-defined images for high-quality observation and analysis
• Recording System: Still Picture and Movie enables capturing high-quality images and videos for multifunctional documentation and analysis
• G Responsivity: 1.0?V/lux-sec provides good sensitivity to light, producing bright and clear images under varied illumination
• Dynamic Range / SNR: 71?dB / 44?dB delivers good contrast and low noise for accurate image capture
• Frame Rate (FPS): 15 @ 1280×720 / 50 @ 320×256 allows smooth live viewing for interactive lessons and fast laboratory processes
• Exposure: Auto and manual, 0.14?ms ~ 2000?ms allows flexible brightness control for various lighting conditions
• Spectral Range: 380–650?nm with IR-cut filter
• White Balance: Whole area white balance, manual temperature/tint adjustment, NA for monochromatic sensor
• Color Technique: Ultra-Fine Color Engine, NA for monochromatic sensor
• Multi Output Options: WiFi, streams high-resolution images to up to 3 devices simultaneously, compatible with iOS, Android, OS?X, Linux and Windows
• Mount: C-Mount, 25.4?mm (1 inch) diameter with 32 threads per inch
• Housing: Integrated zinc-aluminum alloy for durability
• Software: BMS_pix3 for image capture, video recording and measurement tools. Full version for Windows, light version for Linux and macOS
• Capture/Control SDK: Windows/Linux/macOS/Android multiple platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
• Cooling System: Natural
• Maximum Connected Devices: ≤3
• Operating Temperature: -10 ~ 50?°C
• Storage Temperature: -20 ~ 60?°C
• Operating Humidity: 30~80?% RH
• Storage Humidity: 10~60?% RH
• Supported OS: Microsoft® Windows® 11 and higher, macOS & Linux. Still compatible with Windows 7/8/10, but for best performance the latest update is recommended, since Microsoft and we only support Windows 11 and higher. The BMS_pix3 software is available as a full version for Windows and a light version for Linux and macOS.
• PC Requirements: CPU equal to Intel Core2 2.8?GHz or higher, Memory 2?GB or more, WiFi adapter with DHCP enabled, Display 17” or larger
• Mobile Access: Free iOS and Android apps
• PAD: iPad or Android tablet
