BMS WiFi USB CMOS Camera Set - 2Mp

The 2MP Wi-Fi digital camera transforms any microscope into a wireless imaging solution. Ideal for teaching and interactive lab work, it streams high-resolution images directly to WiFi-enabled devices including computers, tablets and smartphones supporting iOS, Android, Linux and Windows. Equipped with BMS_pix3 software, the camera enables image capture, measurement and annotation for both teaching and research applications. Its robust zinc-aluminium housing and C-mount interface ensure reliable performance and seamless integration with any microscopes. Dual connectivity options via USB 2.0 Type-C and Wi-Fi provide flexible use across multiple devices.

he BMS USB camera instantly transforms any BMS microscope into a high-definition digital cinema. Simply attach it using the included reduction lens and adapters and stream sharp live video to any USB-enabled device. Capture crisp still images and detailed analysis. Powered entirely through the USB connection, no extra cables or power sources are needed. Observations become vivid, demonstrations more engaging and research.

USB 2.0 provides dependable data transfer between the camera and any USB compatible device, including PCs, laptops and all-in-one computers. It delivers steady live video and quick image capture, making it ideal for classrooms, laboratories and everyday tasks. With consistent performance and smooth operation, it offers a trusted solution for professional use.

The 2?megapixel sensor captures over 2 million pixels, producing clear images that reveal important details. Ideal for teaching, labs and research, it allows reliable measurements, clear documentation and high-quality images for presentations or reports.

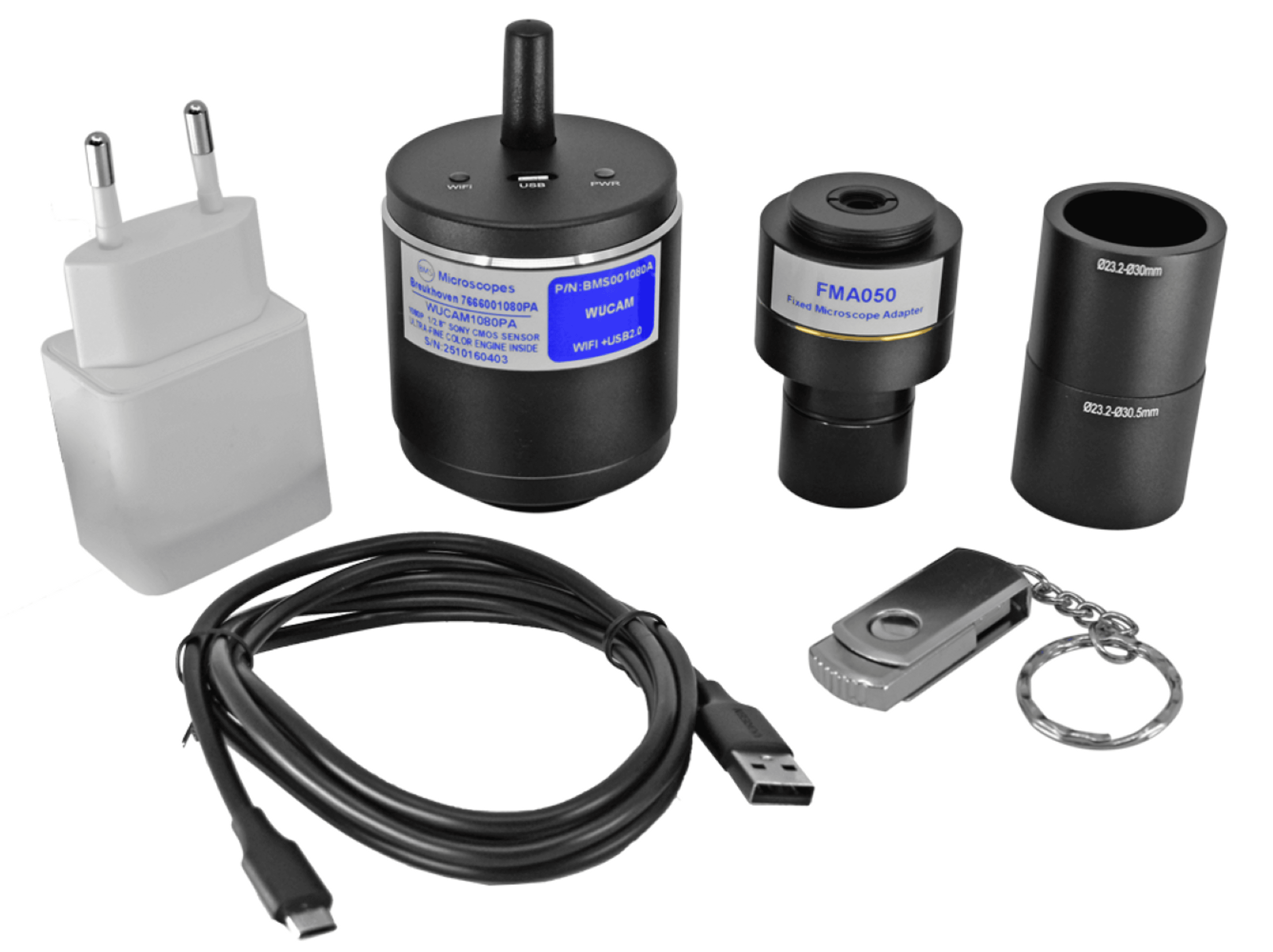

Kit Contents:

• BMS WiFi 2MP USB 2.0 CMOS Camera
• USB Flash Drive with Software
• Power adapter
• Micro USB Cable (1.5m)
• Calibration slide for accurate measurements
• Microscope adapter optics
• Tube size adapter 23.3mm → 30.0mm
• Tube size adapter 23.2mm → 30.5mm

Key Features

• Resolution: 1920 × 1080 (2?MP) captures detailed images of specimens, enabling students and researchers to observe structures and record findings
• Sensor: Sony IMX307(C) Starvis CMOS provides bright, clear imaging for both classroom demonstrations and precise laboratory work
• Sensor size: 1/2.8" (5.57 × 3.13?mm), optimized for microscopy, balancing field of view and image clarity
• Pixel size: 2.9 × 2.9?µm ensures sharp, well-defined images for high-quality observation and analysis
• Recording system: Still Picture and Movie enables capturing high-quality images and videos for multifunctional documentation and analysis
• G Responsivity: 1.0?V/lux-sec provides good sensitivity to light, producing bright and clear images under varied illumination
• Dynamic Range/SNR: 71?dB / 44?dB delivers good contrast and low noise for accurate image capture
• Frame Rate (FPS): USB 50 @ 1920 × 1080 / Wi-Fi 50 @ 1920 × 1080 allows smooth live viewing for interactive lessons and fast laboratory processes
• Exposure: Auto and manual, 0.14?ms ~ 2000?ms allows flexible brightness control for various lighting conditions
• Spectral range: 380–650?nm with IR-cut filter
• White balance: Whole area white balance, manual temperature/tint adjustment
• Colour technique: Ultra-Fine Colour Engine
• Multi output options: USB 2.0 Type-C and Wi-Fi 802.11b/g/n, streams high-resolution images to multiple devices simultaneously, compatible with iOS, Android, OS?X, Linux and Windows

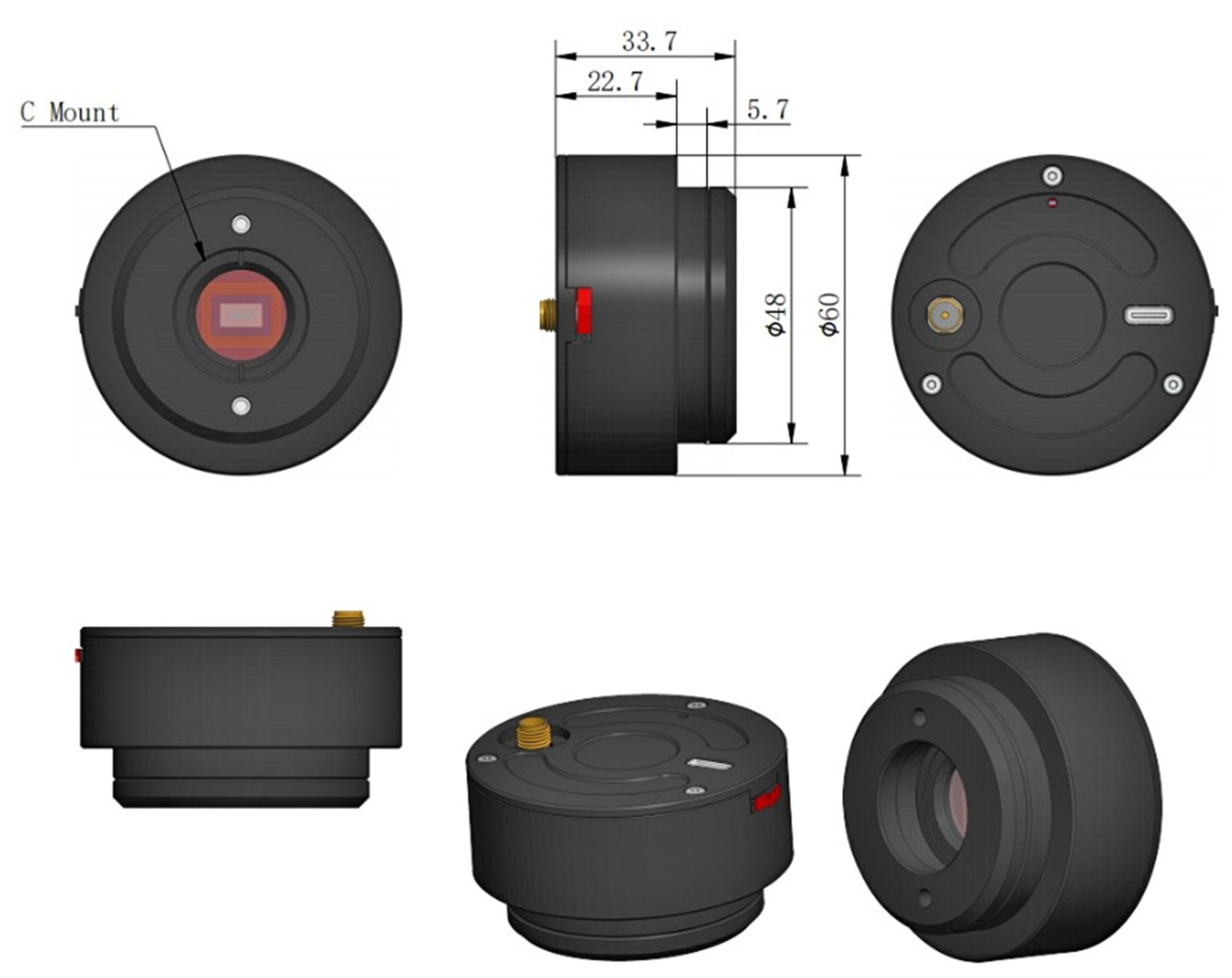

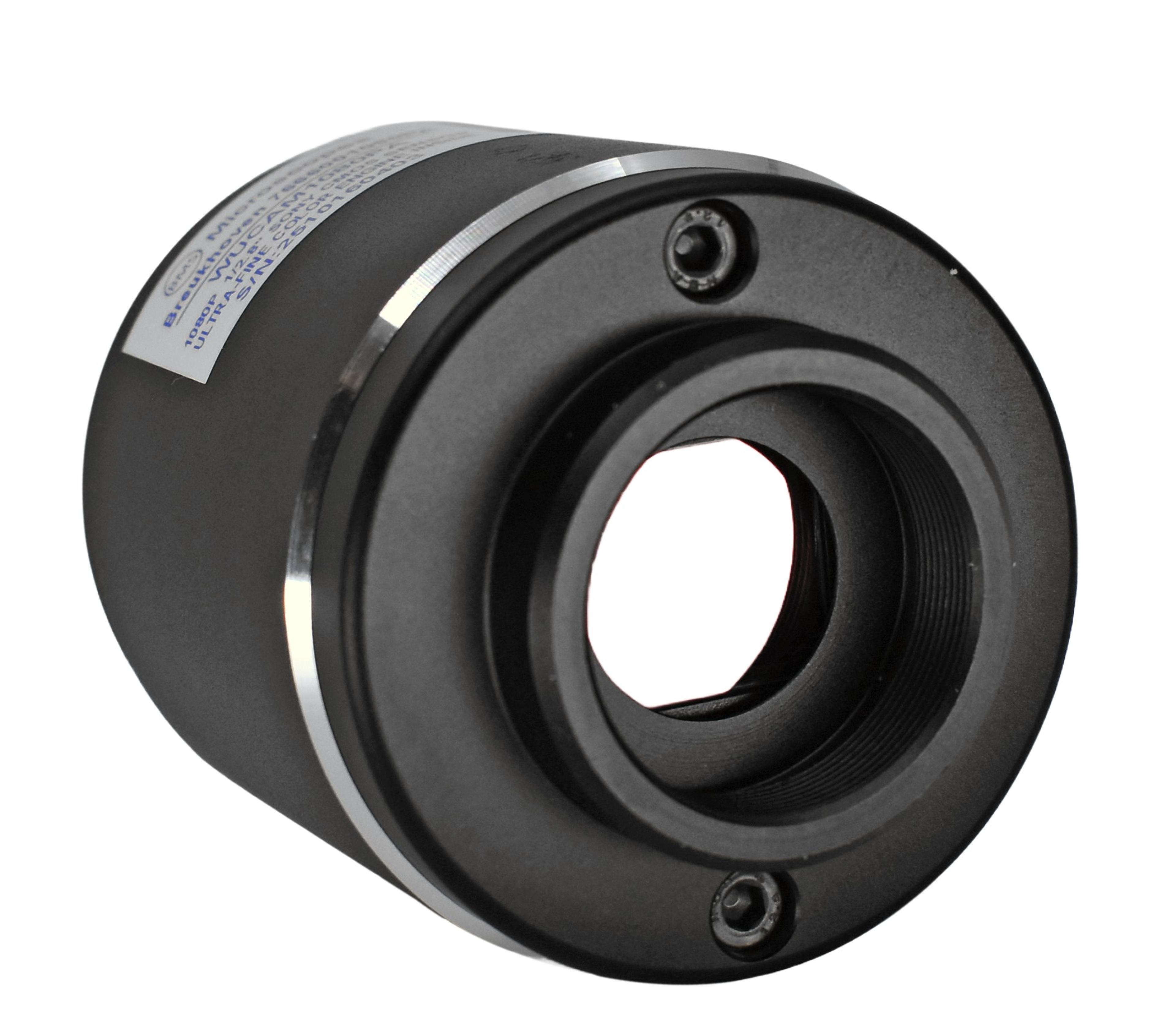

• Mount: C-Mount, 25.4?mm (1 inch) diameter with 32 threads per inch
• Housing: Integrated zinc-aluminium alloy for durability
• Software: BMS_pix3 for image capture, video recording and measurement tools. Full version for Windows, light version for Linux and macOS
• Capture/Control SDK: Windows/Linux/macOS/Android multiple platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
• Cooling system: Natural
• Maximum connected devices: ≤3
• Operating temperature: -10 ~ 50?°C
• Storage temperature: -20 ~ 60?°C
• Operating humidity: 30~80?% RH
• Storage humidity: 10~60?% RH
• Supported OS: Microsoft® Windows® 11 and higher, macOS & Linux. Still compatible with Windows 7/8/10, but for best performance the latest update is recommended. The BMS_pix3 software is available as a full version for Windows and a light version for Linux and macOS
• PC requirements: CPU equal to Intel Core2 2.8?GHz or higher, Memory 2?GB or more, Wi-Fi adapter with DHCP enabled, Display 17” or larger
• Mobile access: Free iOS and Android apps
• PAD: iPad or Android tablet
